Product Details
Product Description
Product Description
Semi-automatic capsule filling machine
Description:
New Rich Smart semi-automatic capsule filling machine is a piece of equipment designed for the efficient and precise filling of capsules with powders, granules, or other materials. It strikes a balance between manual labor and fully automatic machinery, offering advantages in both flexibility and cost-effectiveness.it supports 000#, 5# and various types of standard-mechanism capsule powder, pellets, small tablets and granules to fill and fill small semi-automatic capsule filling machines. The three stations of this model (sacks broadcasting, filling, locking) are parallel and independent, the stations are connected in an orderly manner and the programming control system adopted makes the overall operation simple and achieves efficient production.
Introduction:
1. Functionality
Capsule Filling: The primary function is to fill empty capsules with a desired substance. This can include pharmaceuticals, dietary supplements, or nutraceuticals.
The Rich Smart Semi-Automatic Operation: Operators are involved in some manual processes, such as loading capsules and placing filled capsules into trays, while the machine handles tasks like dosing and sealing.

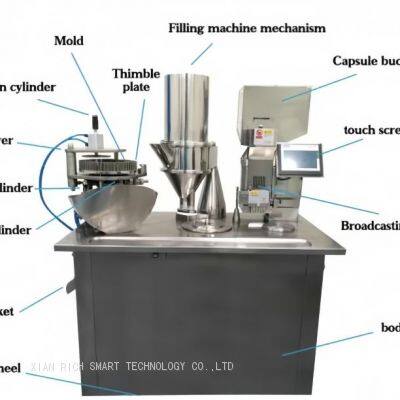

2. Components
Filling Station: Where the material is dosed into the capsules. This might involve a dosing hopper and a mechanism to ensure accurate measurement.
Capsule Holder: Holds the empty capsules in place during the filling process.
Sealing Mechanism: Seals the capsules after filling, ensuring that they are securely closed.
3. Advantages
3.1The Rich Smart semi-automatic capsule filling machine adopts touch panel operation, variable frequency adjustment speed, pneumatic joint control, and electronic automatic counting device of the machine, which is easy and safe to operate.
3.2 The Rich Smart semi-automatic capsule machine adopts a scientific and new horizontal capsule locking mechanism, which can effectively avoid the leakage of herbal powder during the capsule locking process, thereby improving the utilization rate of raw materials and filling accuracy; Fully paste the principle of full capsule, the capsule will not be damaged when the capsule is locked, which greatly improves the yield.
3.3 The powder semi-automatic capsule filling machine adds a user-friendly and quick filling button below the machine (anti-accidental double verification lock bag, emergency stop switch), which can realize the metering adjustment function by controlling the powder filling speed. The filling amount is accurate and the error is less than 3 %. The small-piece semi-automatic capsule machine with the transmission mechanism connected by a screw only needs to eject the screw, move the hopper, and remove the screw of the hopper to easily replace the filling material and clean the remaining material.
3.4 Cost-Effective: Generally less expensive than fully automatic machines, making it a good option for smaller operations or startups.
3.5Flexibility: Suitable for small to medium production runs and can often handle a variety of capsule sizes and types.
3.6 Precision: Provides accurate filling with minimal waste, depending on the design and calibration of the machine.
4.Technical parameter
Max.Capacity
| 30000pcs/h
|
Applicable capsule
| 00#、0#、1#、2#、3#、4#、5#
|
Power supply
| 2.12kw
|
Power
| 220V/50Hz
|
Outline dim.
| 1300*800*1750mm
|
Net weight of machine
| 400kg
|
Gross weight of machine
| 500 kg
|
Packing size
| 1640*720*1700mm
|
Technical parameter
Max.Capacity
| 40000pcs/h
|
Applicable capsule
| 000# /00# /0# /1# /2# /3# /4# /5#
|
Power supply
| 2.2kw
|
Power
| 380V/50Hz
|
Outline dim.
| 1300*800*1750mm
|
Net weight of machine
| 400kg
|
Gross weight of machine
| 500 kg
|
Packing size
| 1640*720*1700mm
|
Specs :
1
| Mould changing time
| 5-8mins
|
2
| Working capacity
| 12,000-25,000 pcs/hour
|
3
| Suitable capsule size
| 000#,00L#,00#,0L#,0#,1#,2#,3#,4#,5#
|
4
| Power supply
| 380V 50Hz 3PH 2.12kw
|
5
| Compressed air
| 0.03m3/min 0.7Mpa
|
6
| Vacuum pump
| 40m3/h
|
7
| Net weight
| 380kg
|
8
| Overall dimension
| 1130×700×1600 mm
|
9
| Packaging size
| 1650×720×1700 mm
|
10
| Gross weight
| 500kg
|
>>
