25m3 LPG Storage Tanks, 25000 Liters 12mt ISO 9001 Approved Cooking Gas LPG Tank Price

Product Description

CHENGLI SPECIAL AUTOMOBILE CO.,LTD
*ASME standard available*
*100% new condition by manufacturer direct sale*
*100% quality guaranteed*

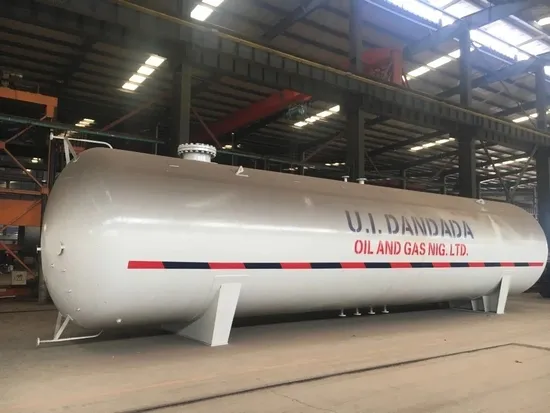

I. Details of 25M3 LPG Storage Tanks, 25000 Liters 12MT ISO 9001 Approved Cooking Gas LPG Tank price
(1) LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane tank and propane tanker which belongs to special equipment.
(2) It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc. (3) Tanker volume capacity is optional from 2m3 to 200m3. (4) According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability. Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology. Standard configuration:Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders. Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
Features:
1. Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2. Suspension: German design heavy mechanical suspension or air bag.
3. LPG tanker: Heavy duty loading capacity, 40500 liters, 49600 liters, 56000L, 59600L.
4. Safety Control System: Safety Valve, Pressure Meter, Cut-off Valve and etc.
5. 100% X-raying test
» II. LPG GAS TANKER TRAILER Specification :

ITEM	PARAMETER	ITEM	PARAMETER
Volume	30-100cbm	Thickness of Shell	14mm
Tank Material	Q345R	Thickness of End plate	16mm
Overall Size	10962*2728*3318mm	Tank Net Weight	12750kg
Tank Diameter	2700mm	Loading Capacity	23940kg
Design Pressure	1.77Mpa	Gas Density	420kg/M3
Hydraulic Test Pressure	2.22Mpa	Corrosion Allowance	1mm
Design Temperature	-20ºC~60ºC	Heat Treatment	Bulk
Vapor Outlet	DN50	Gas Outlet	DN50
Life time	15 years
Accessories
Model	Item	Qty	Junction surface
J41N-2.5-50	Stop Valve DN50	6	RF
J41N-2.5-25	Stop Valve DN25	2	RF
J41N-2.5-100	Stop Valve DN100	1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5	1	/
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5	1	RF
A42F-25-100	Safety Valve DN100	1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa	1	/
WTQ-280	Thermometer M33*2 2.5 degree	1	-40ºC~60ºC

» III. Product Detailes: » IV. LPG SERIES » V. Packaging & Shipping:
Thick wax polished on products before shipping to protect. Use container, RORO/bulk ship or others as your requirement. We provide transportation insurance to guarantee the new and great condition of products for customers.
» VI. ABOUT US CHENGLI SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,
product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck ,
wrecker truck , refrigerated truck and etc.
Main info as below:
Established from 2004. 12 independents workshops. 1000 sets of equipment, 25 assemble lines. 300 senior engineers and technicians. About 8000 workers. 800kinds of LPG, trucks and semi-trailers. 20 years wholesale experience Turnover 250 million and Export 20million annually Turnover 2 billion trucks and semi-trailers annually. LPG/Truck Sold to 90 countries Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
FAQ
Why choose us?
Experience
More than 15 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system
and passed the ISO9001-2008 and the 3C (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,
faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Any more information,please do not hesitate contact with us!

---
