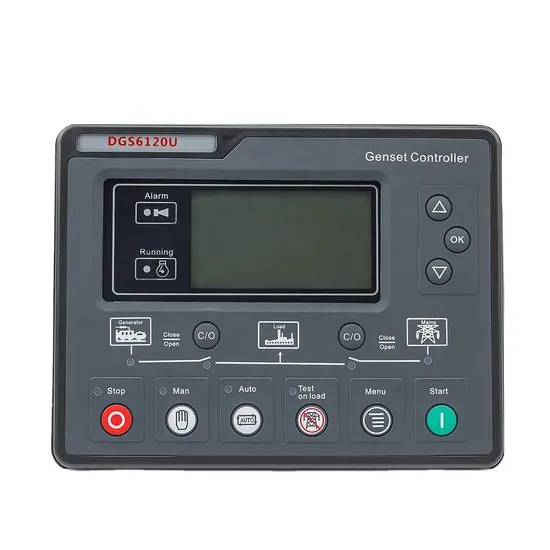

New 6110u 6120u Diesel Generator Controller Amf Auto Start Stop Control Module Panel Generator Parts Replace Smartgen Hgm6120n

Product Description

Product Description Diesel engine Generator Intelligent controller electronic control module 6110
6100U series power station automation controller integrated digital, intelligent, networked technology, for single generating set
automation and monitoring system, realize the generator automatic start / stop, measurement data, alarm protection and "three
remote" function. Controller adopts the large screen liquid crystal display (LCD), a Chinese, English, Spanish and Russian
optional interface, simple operation, reliable operation.
6100U series power station automation controller using microprocessor technology, the various parameters of the precision
measurement, fixed value adjustment, timing, threshold setting and other functions, all the parameters of the controller can be
from the controller front panel adjustment, or the use of PC through the adjustment of programming interface, also can use the PC
through RS485 interface adjustment and monitoring. The utility system has the advantages of compact structure, simple connection
and high reliability, and can be widely used in the automatic system of various types of generating units.
Performance and characteristics
6100U series has four models:
6110U/6110UC: for the single machine automation, through the remote control of the power generation unit signal automatic start
and stop;
6120U/6120UC: in the 6110U/6110UC based on the increase of the city's electricity consumption monitoring and municipal electricity
/ power generation automatic switching control function (AMF), in particular, is applicable to a city one machine automatic
system.
Note 1:6110UC/6120UC has a RS485 interface, 6110U/6120U no RS485 interface.
Note 2: after the text all to 6110UC/6120UC as an example to describe.
The main features are as follows:
Liquid crystal display LCD 132x64, with backlight, display four (Simplified Chinese, English, Spanish and Russian) language, touch
button operation.
The screen saver by hard screen acrylic material, wear resistance and scratch resistance;
Using the silica gel plate and key press, to adapt to the environment of high temperature and low temperature;
With RS485 communication interface, the use of MODBUS protocol can achieve the "three remote" function;
Suitable for three-phase four wire, three-phase three wire, single phase two wire, two phase three wire (120V/240V) power supply
50Hz/60Hz system;
Collection and display of the three phase voltage, three-phase current, frequency and power parameters;
The city electricity has the function of over voltage, under voltage and phase, and the power generation has the function of over
voltage, under voltage, over frequency, under frequency, over current function;
Precision acquisition of various parameters of the engine:
Control protection function: to achieve the automatic power on / off of diesel generating set, ATS switch and perfect the function
of fault display and protection;
Has the power down, idle speed control, pre heating control, speed control function, and all of the relay output;
Parameter setting function allows the user to change the setting of its parameters. At the same time, memory in the internal flash
memory, isn't lost in the system is out of power, all the parameters of the controller can from controller front panel adjustment,
or the use of PC through the programming interface to adjust (using SG72 adapter), use the PC through RS485 interface to adjust;
A variety of temperature, pressure, level sensor can be used directly, and can customize the parameters;
A variety of starting conditions (speed sensor, oil pressure, power generation) can be selected;
Wide power supply range (8~35) VDC, can adapt to different starting battery voltage environment;
All parameters are digitally adjusted, and the simulation adjustment method of the conventional potentiometer is abandoned, and
the reliability and stability of the whole machine is improved;
A rubber sealing rings between the shell and the design of control panel, waterproof performance can reach IP55;
The controller is fixed with a metal clip;
Modular structure design, flame retardant ABS shell, plug and plug connection terminal, embedded installation, compact structure,
convenient installation.
