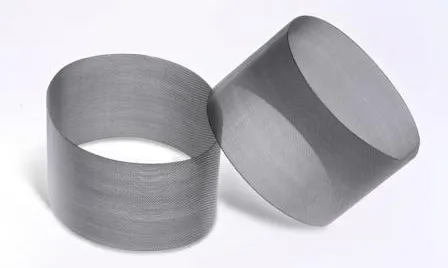

Wt-518 Mesh Apron Lattice Apron for Compact Spinning Machine

Product Description

Product Description
Mesh apron is the key part of compact spinning device because of its following fuctions:
1. The mesh apron works similar as a normal apron in drafting system besides that vacuum air flow contributes better control for the fibres and the yarn.
2. Better control of the free fibres in Twisting Triangular Space. The free fibres are combed by air before move into the twisting triangular space so that these fibres will be twisted tightly together around the main yarn.
3. Since the "free fibres" are twisted very well around the main yarn there are few hairness and offers the opportunity to cancelling the burning process during the finishing.
4. When the yarn is passing on the mesh apron, the short free fibres are taken away by the negative pressure air flow, this poses a great improvement for reducing nips and hariness.
5. Since the free fibres are maximumly unilized during twisting, the strength of the yarn are improved maximumly as well as yarn evenness improved by 0.5%.

Dimensions	Size	Brand	Manufacturer
¢110x25mm	35x25	Toyota Old Model	Toyota
¢114x25mm	36.3x25	Sussen	Sussen
¢122x25mm	38.9x25	Huafang	Huafang
¢123x25mm	39x25	Huafang	Huafang
¢124x17mm	39.4x17	Totota New Model	Toyota
¢129x20/24mm	41.1x25	Tonghe	Tonghe
¢131x23.5mm	41.7x23.5	Tonghe	Tonghe
¢136x18mm	43.3x18	Bint	Bint

Detailed Photos
Product Parameters

Main Technical Data
NO.	Model	Mesh	Density				Air permeability		Perimeter
			Warping density			Weft density
1	YB1401	150	60			60	27		131
2	YB1402	140	55			55	32		129
3	YB1403	120	45			45	38		122
4	YB1405	90	35			35	41		114

Mesh apron stock
Items	Size	color	quantity
1	114*24.2*140	black	14000
2	114*25 combined twills	grey	12850
3	114*25*140	grey	2000
4	114*25*140	black	22000
5	114*25*80 wool spining	grey	2000
6	122*24*2 wool spining	grey	1000
7	122*24.2	black	4000
8	122*24.2*100	grey	2000
9	122*25 8Ctype	grey	9000
10	122*25 wool spining	grey	33000
11	122*25*130	black	8500
12	122*25*140	grey	5000
13	122*25*140	black	7000
14	122*25*140	black	21480
15	123*25*120	black	3000
16	129*20*140	grey	1000
17	129*24 C type	black	2000
18	129*24	grey	13000
19	129*24*125	grey	14000
20	129*24*140	black	6000
21	129*24*140	grey	13000
22	129*25 combined twills	grey	17000
23	129*25*100	black	5000
24	129*25*120 jacquard		8000
25	129*25*125	grey	26000
26	129*25*125	black	17000
27	129*25*125 jacquard	grey	22000
28	129*25*140 combined twills	grey	1000
29	129*25*140 jacquard		6000
30	130*23.5 jacquard		1000
31	131*23.5*120	black	4000
32	131*23.5*140 combined twills	grey	2000
33	131*23.5*140	grey	26000
	totally		330830

Company Profile
WHO ARE WE?
Liaocheng Wetex Textile Machinery Co., Ltd, established in 2000, is located in Changshou Zone, Zhouzhuang Town, Jiangyin City nearby "World No.1 village"-Huaxi village. Our company is one of the largest High-tech enterprises in textile machinery field, and we also hold ISO9001:2000 quality management system certification for comprehensive information management.
Youbang Textile Machinery will insist the entrepreneurship principle of integrity-based, long term-cooperation, mutual development, and set up the production feature of noone have- we have, someone have- we excellent. We will keep improving and relentless pursuit.
Wetex Textile Machinery is the largest mesh apron production base in China. Based on a strong technical and production team, we autonomic design and produce the high- quality mesh apron which has the advantage s of high tenacity, flat fabric, clean cut, long use life etc. to meet the need for all kinds of mesh apron all over the world (such as Changzhou Tonghe, Jiangyin Huafang, Zhejiang Dechang, Wanbao, Tongling Songbao, Gemany Susseen, Japan Toyata spinning machine). In addition, we can manufacture varies of mesh aprons according to the customer's requirement. Warmly welcome new and old customer to visit our factory.
Our Advantages
WHY US?

01 Industry experience
With rich experience in the industry, Wetex gives professional guidance and advice according to the needs of customers.
02 Customer Oriented
Wetex always puts customer's satisfaction as the first place, from professional sale suggestion, order tracking, to after sale one-site service, offering customer a life-cycle support.
03 Long-term cooperation
Wetex offer long warranty period, flexible payment methods, online and offline exclusive services, etc. are all to ensure long-term and stable cooperation
04 Own factory endorsement
OUR TEAM:
EXHIBITIONS WE ATTEND:
SERVICES WE OFFER:
FAQ
1.Q:What are your payment terms?
A:L/C,D/A,D/P,T/T,Western Union,MoneyGram

2.Q:What is your logistics method?
A:Express,sea,lan,air

3.Q:How long is your lead time?
A:30-90 Days

4.Q:How about your after-sales service?
A:We offer engineers available to service overseas under merchandiser's supervision and translation

5.Q:Can i go to the factory for a field trip?
A:Welcome to our old and new friends to visit our factory very much,In addition,if you wish we will send you our instructions and relevant information to facilitate a face-to-face meeting
6.Q:Are you a manufacturer or trading company?
A:We are the leading manufacturer of high speed rapier loom and fully automatic sectional warping machine. And also with many years business relationship with Local textile machinery accessories factories, we also have a trading company to supply one stop solution for our foreigh customers.y time and price effeciency

---
