High Quality Plastic Aluminum Tire Recycling Machine Shredder with Weg Motor

Product Description

High Quality Plastic Recycling Machine For Waste Bin Shredding With WEG Motor
Plastic Recycling Machine brief introduction:
The DGX plastic recycling machine has a 750mm diameter rotor made of solid steel, operating at a speed of 52rpm.The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredded material.
The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system of plastic shredding machine is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the plastic shredding machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance. Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end of the rotor.
A safety switch prevents machine stand up when the front panel is open and the machine features emergency stop buttons on the plastic shredder body and control panel.

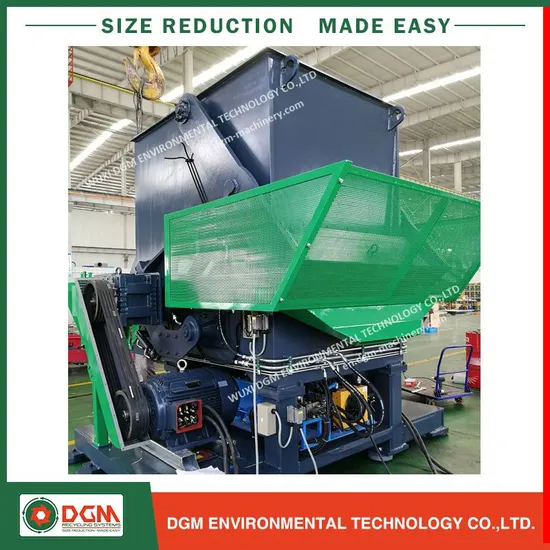

Pictures of Plastic Recycling Machine :
Specification of Plastic Recycling Machine:

Item		Unit	DGX1500	DGX2000	DGX3000
Cutting chamber		mm	2540*1620	2540*2020	2540*2820
Rotor Diameter		mm	750	750	750
Rotor Speed		rpm	52	52	52
Main Motor Power		kw	2*75	2*90/2*110	2*132
Rotor Knives		pcs	76	96	136
Stator Knives		row	4	5	7
Hydraulic Ram Power		Kw	11	11	11
Screen Size		mm	40-100	40-100	40-100
Effective Working Area		mm	1500*1490	1500*1900	1500*2700
Dimensions	A	mm	3600	3600	3600
	B	mm	2260	2260	2260
	C	mm	870	870	870
	D	mm	3350	3350	3350
	E	mm	2540	2540	2540
	F	mm	1620	2020	2820
	G	mm	3500	4000	5000

Layout for Plastic Recycling Machine :

Key features of Plastic Recycling Machine

Alternative options

- Large diameter flat rotor - Machined pocket knife holders - Optional hard facing - Concave ground square knives - Robust ram construction - Heavy duty guide bearings - Universal couplings - Low speed, high torque geared drive - Powerful hydraulic swing type ram - Reduced footprint(compared to horizontal pusher designs) - Bolt in drive shafts - Multiple rotor designs - Two speed hydraulic system - Oil cooling on ram and gearbox - Ram comb plate - Amp meter control

- Hydraulic screen cradle - Gearbox with shrink disc - Rotor cooling - Pipe spacer - Touch screen PLC - Hopper mounted viewing mirror - Increased motor drive - Hydraulic drive - Bespoke colour scheme - Turbo hydraulics - Housing wear plates

Cetificates
Packing and Shipping
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the plastic shredding machine to be safely shipped to customers appointed location.
5. If you have any other request for the packaging or loading, we will do our best to meet your demands.
Company Introduction
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling. Utilizing core German design and technology, we have expanded our scope of application to include plastics, timber, rubber, biomass and many other industries where size reduction and materials processing are critical. Our dedication to product development and attention to individual customer needs means we are well equipped to offer successful business solutions and tailor-made processing plants to our customers.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with 15 years of experience in tire and plastic machinery manufacturing, and 25 years of experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.99 Qianluo Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: What is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
DGM---Qualified supplier to offer you high quality Plastic Recycling Machine.

---
