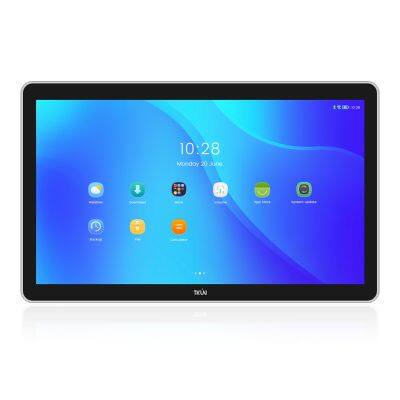

| Display pane | Brand | TKUN | ||
| Size/Proportion | 21.5 inch 16:9 | |||
| Model | P215WUGA | P215WUGA-A | ||
| Brightness | 450cd/㎡ | 1000cd/㎡ | ||
| Resolution | 1920*1080 | |||
| Contrast | 1000:1 | |||
| Display color | 16.7M | |||
| Response time | 2-5ms | |||
| Visible angle | 89/89/89/89 | |||
| Pixel pitch(mm) | 0.248(H)X 0.248(V)mm | |||
| Touch screen | Touch type | Projected multi-point capacitive touch screen (10 points)(AG anti-glare) | ||
| Touch screen hardness | 6H | |||
| Positioning accuracy | less than 2MM | |||
| Ct.Life | ≥50 million times | |||
| Touch media | Capacitive touch pen, fingers | |||
| Right click functionality | Click on a point, long and hold more than 3 seconds | |||
| Touch interface | USB(optional COM) | |||
| Support system | win7, win8, win10, android, linux and so on | |||
| Motherboard function | Refresh frequency | 60Hz | ||
| Power input | DC12-36V | |||
| Functional interface | HD，DP，VGA，Audio | |||
| Environment | Operating temperature/humidity | -20℃ to +70℃/ 0-80% relative humidity, no condensation | ||
| Storage temperature/humidity | -40℃ to +80℃/ 0-90% relative humidity, no condensation | |||
| Vibration resistant | 30Hz, X, Y, Z axis 60 minutes each | |||
| Esd protection | Class 3, contact discharge ± 6KV, air discharge ±8KV | |||
| Panel level | IK6 | |||
| Safety regulations | Test standards | IEC60601 | ||
| Equipment use | Application field | Military equipment, aerospace equipment, rail transit/communication, professional photography display, smart supermarket, smart robot, smart meeting room, factory assembly line/POS cash register, car GPS, elevator entrance, commercial office building, exhibition site, etc. occasion | ||
| Equipment clean | Cleaning method | Spray the screen cleaning liquid or clean water on the surface of the soft lens cloth to wipe the screen. Do not use alcohol, strong acid, or strong alkali to wipe the screen. The shell can be wiped with a soft towel or lens cloth. | ||
| Product service | After service | one-year warranty and lifelong maintenance | ||
| Customized service | OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. | |||
