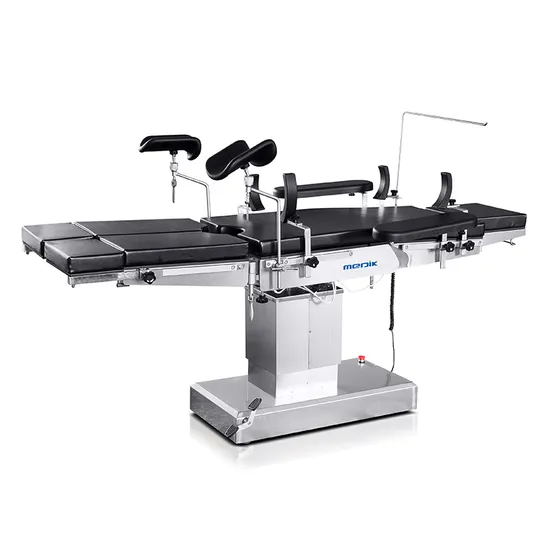

Ya-10e Hospital Mobile Electric Operating Room Surgical Table

Product Description

Product Description YA-10E electric operating table is used for head,neck,throacic-abdominal cavity,perineum and limb surgey in hoapital operating table room,as well as obstetrics and gynecology,ENT,orthopedics and other operations.
Feature *The table top is composed of head board, back board, seat board, leg board, foot board, and waist board. *Both the head board and the foot board are of detachable structure. *The leg plate can be folded, abducted and detachable, and it is convenient to adjust; the table top lifting, front and rear tilting, and back plate folding are real ized by electric devices. *The inner column, outer cover, base cover and side plate cover are all made of high-quality stainless steel. *The mattress is made of high-density sponge outsourcing artificial leather. *Equipped with a built-in emergency power supply.
TECHNICAL PARAMETER Technical parameter Overall size 2100*550*700-950mm Reverse trendelenburg 30° Trendelenburg 25° Lateral tilt left/right 20°/20° Head section up/down 55°/90° Back section up/down 70°/30° Leg section down 90° Leg section outwards 90° Kidney elevator mechanism 120mm Slide motion 350mm Loading capacity 200kg PARAMETER STANDARD ACCESSORIES Anesthesia screen frame 1 piece Shoulder support 1 pair Body support 1 piece Armrests 1 pair Leg support holder 1 pair Foot support 1 pair Hand remote 1 piece

Detailed Photos

Company Profile

---
