7 10 12 15 17 21 Inch Android All in One PC 350nits IP65 LCD Industrial Computer RS485 RS232 HMI Touch Screen Industrial Panel PC

Product Description

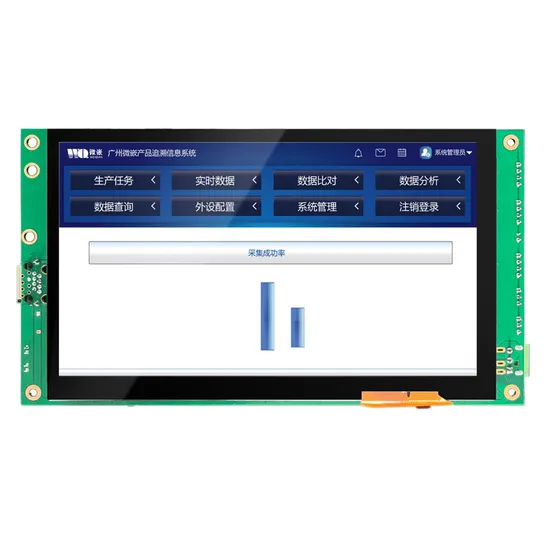

7 10 12 15 17 21 inch Android all in one PC 350nits ip65 lcd industrial computer rs485 rs232 hmi touch screen industrial panel pc

1. Parameter

Product model	WAR-070C-QN00 / WAR-070C-QN10
Basic parameters	CPU:Quad-core Cortex-A53,Frequency 1.5GHz GPU: IMG PowerVR GE8300 Memory:1GB LPDDR4 (2G as option) EMMC:8GB(16G as option)
Display screen	Size :7 inch Resolution :1024×600 Width-temperature,61k colors or 24-bit true colors LED backlight:lifetime>25000 hours
Touch screen	Capacitive touch screen
Hardware interface	4 channel 3-wire RS-232 serial port (COM1,COM2,COM3,COM5). 2 channel RS-485 interface (COM3,COM4), multiplexing with RS-232 (COM3) 1 channel USB Device interface,support ADB connect to PC to exchange data and debug application. 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC interface,support TF card and MMC card 1 channel PH2.0-2Pin External power amplifier interface (8Ω/3W) 1 channel PH2.0-2Pin audio input MIC interface(optional) 1 channel SIM card interface(optional) 1 channel EDG3.5-3P power input interface DC12V~24V Optional-WIFI+Bluetooth,4Gmodule,etc. (Not included as standard)
OS	Android 10
Defend degree	/
Working environment	Power : DC12V ~ 24V(24V as recommendation) Working temperature:-10~50ºC Storage temperature:-20~70ºC Working humidity:10~90%RH
Size	No Shell Size :194.5x107.5x25.4 (mm)
Application area	Industrial control, detection device, instruments and meters, security monitoring, medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support	Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C#,etc. Easy change the user-defined splash screen.

2.Interface definiton
2.1 RS-232 interface
4 channel RS-232, support the highest baudrate 115200bps. The corresponding interface in Android system is COM1,COM2,COM3, COM5.
2.2 RS-485 interface
2 channel RS-485, the corresponding interface in Android system is COM3,COM4, and multiplexing with RS-232 (COM3) .
3.Exterior size
Exterior size:194.5x107.5x25.4(mm)
Company Profile
FAQ Q: What kind of all-in-one industrial panel pc do you manufacture? A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .Q: What is the main size for your panel pc and industrial monitor? A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.Q: Does this industrial panel pc support secondary development? A: Weiqian's industrial panel pc can support secondary development.Q: What industry is your industrial panel pc applied in? A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ? A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.Q: Whether your industrial panel pc support the OEM / ODM? A: Weiqian 's industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.Q: What is your warranty period? A: 1 Year warranty period & Lifetime technical support.

---
