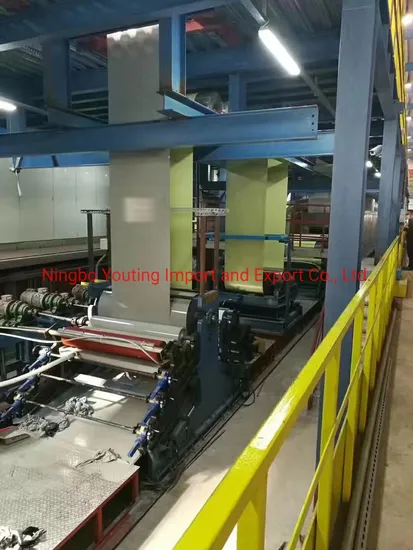

China Factory Aluminum Metal Painting Coil Coating for Tinplate, TFS, GS, Machinery Coil Coating Line Equipment

Product Description

China factory aluminum metal painting coil coating for Tinplate, TFS, GS, machinery coil coating line equipment
Color coated aluminum coil, which was finished through degreasing, cleaning, passivation, coating and baking, are mainly used in fields of construction decoration such as aluminum composite panel and ceiling etc..
Application of Product and characteristics:
1,Coating thickness is stable by using rolling coater
2,The paint can be PVDF, PE and AC 3, With multi-module PLC control system 4, Heating and drying system and drying system with natural gas or diesel oil Coil parameter

1	/Matierial	Tinplate, TFS, GS
2	/Thinkness	0.16-0.4 mm (os≤300Mpa,ob≤300Mpa)
3	/Width	500-1000mm
4	/Coilinside diameter	Φ508mm
5	/Coilousiade diameter	≤Φ1600mm
6	/Coil weight	Max10T

Product parameter(Coating)

1	/Coating	Double side(Once)
2	/Oven Temperature	180-220ºC
3	/Running Control	Automatic

Machine parameter

1	/Speed	0-50m/min
2	/Power	125KW
3	/Direction	/By buyer
4	( Size)	40mx5m(L*W)
5	/Source	AC 3×380V10%,60Hz±2%
6	/Compressed air	0.4-0.8Mpa, 1000L/min
7	N46/Hydraulic oil	500L/By buyer
8	/Color	/By buyer
9	Gas	LPG or LNG, 30-40kg/hour

Description:

1	/Uncoiler	1set	AC2.2KW	Hydraulic
2	/Coil carr	1set	AC0.75KW	Hydraulic
1	/Roller Feeder	1Set	AC3.7KW
2	/Joint Machine	1Set	AC5.5KW

3	/EPC machine	2Set
4	/Tension Machine	3set	AC15KW	Inventor control
5	/Washing part	1set	AC15KW
6	/Oven for washing and passivion	1set	AC7.5KW
7	/Passivation Coater	1set	AC 2.2KW*4	Inventor control
8	/Coater(Double side)	1set	AC1.5KW*4	Inventor control
9	/Oven	1set	AC11KW*2,AC2.2KW*4	LNG
10	/EDC device	1set
12	,/Tension machine for slitting with guider roller and pre-separation	1set		Hydraulic
13	/Decoiler	1set	AC37KW	Inventor control
14	/ lift platform	2set		Air up-down
15	/Plate car	1set	AC0.75KW	Out-in by motor on the track
16	/Hydraulic pressure station	2set	AC2.2KW,AC1.5KW
17	/Control system	1set	PLC:Simens S7-200 Touch screen:Winview Inventor: Wiscontrol	PLC control

Manufacturing Technique
Application of Products
Cooperation Brand
Delivery & Shippment
FAQ
Q: What information do I need to provide Qiangda Company to have a set of equipment quoted?
A: Qiangda&Yuao technical department will design and drawing mechanical equipment according to the customer's requirements for the product.The sales department will quote production line and spare parts according to the requirements of the drawings.
Q:If I don't see the machine I need in the Geartech catalog or on the website, can I inquiry about a totally custom machine?
A: Qiangda&Yuao specializes in custom machine solutions. Our R&D department professionals work with customer's needs to supply a custom solution for their project.
Q: How does the machine sign-off, shipping and installation work?
A: Qiangda&Yuao has nearly 20 dispatched engineers who are on standby to go to the customer's factory for installation, commissioning and maintenance. It usually takes 30 days to stay there. We will also teach factory workers the correct use of machinery and equipment, simple maintenance and other skills.

---
