Basic Info.
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
Certification
CE, EMC, GS, LVD, RoHS
LED Chips
Aluminium Die-Casting
Product Name

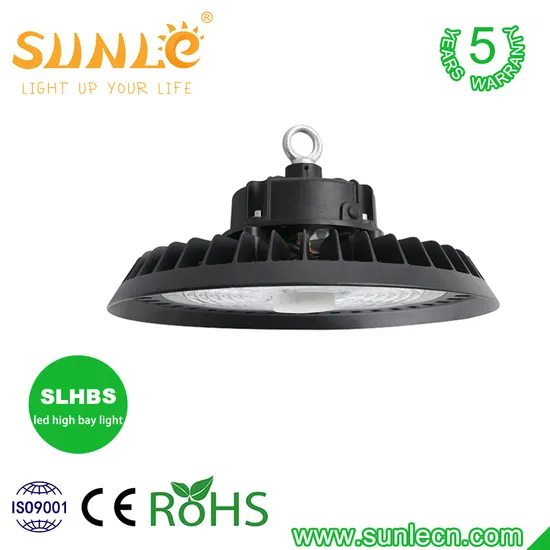

Waterproof IP65 Industrial UFO Lamp Workshop Light
Input Voltage
AC 85V-265V
LED Luminous Efficiency
130-160 Lm/W
Power Factor
More Than 0.95
Color Rendering Index
More Than 70
Product Size
383*383*147mm
Finishes
White/Black/Grey
Production Capacity
10000/Month
Packaging & Delivery
Package Size
36.00cm * 15.00cm * 15.00cm
Package Gross Weight
3.000kg
Product Description
Input voltage | AC 85V-265V |
Freqency range | 50HZ-60HZ |
Power factor | >0.95 |
Chip brand | EPISTAR/SANAN |
Power supply brand(non-isolated) | SONSEN/SUNLE/Done |
Number of leds | 40C4B 2835 |
40C6B 2835 |
40C8B 2835 |
40C10B 2835 |
System consumption | 100W/150W/200W/240W |
System light effect | 130-150 lm/W |
Lamp's efficiency | >91% |
Color temperature | Pure white | 2700-6500K |
Color rendering index | PW/CW | Ra≥70 |
Light distribution | Symmetrical / circular spot |
Light design | Lens light distribution |
LED Junction temperature | ≤ 80ºC |
Working temperature | -30ºC - +50ºC |
Storage temperature | -30ºC - +50ºC |
IP Grade | IP65 |
Sensing method | Zhaga Book 18 microwave Motion Sensor+Daylight Priority / photocell and daylight harvesting |
Working life-span | >35,000H |
Connect wire | Brown | L |
Blue | N |
Yellow/Green | G |
Color of lamp shell | Black / Silver |
Beam angle | 60° 90° 120° |
Lamp weight : G.W./N.W. | 100W | 1.85KG |
150W | 2.3KG |
200W | 2.85KG |
240W | 3.35KG |
Product size | 100W | D253*182MM |
150W | D308*188MM |
200W | D354*193MM |
240W | D405*201MM |
Advantages:
1. Power box Using powder injection technology, Compared to the general manufacturer of surface oxidation, Not easy to rust.
2. Radiator: The surface of radiator is treated byantisepticand anodic oxidation; With strong performance of dust proof.
3. Advanced production management concept, Low defective rate.
4. Driver: Meanwell(UL) or Sohetek driver(certified by CE, RoHS )
5. Silver gray or black for you to choose from.
6. Additional lens for higher flux 60deg/90deg/100deg beaming angle
7. Instant on/ off; No UV/ flickering
8.50% less power consumption than traditional
Trade Terms:
1. Payment: T/T, L/C at sight, Western Union available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port: Ningbo, China
5. Discouts are offered based on order quantities
>>
