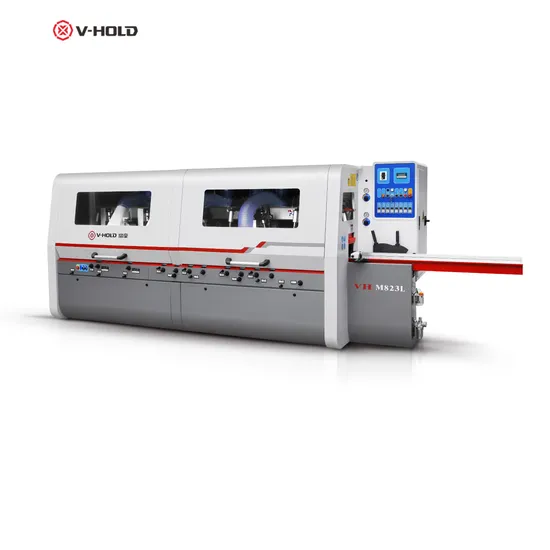

Heavy Woodworking Machinery Wood Planer Four Side Moulder

Product Description

Main Feature
1.Adopt stepless speed regulation with the feeding speed of 6-36 M / min
2.Each spindle driven by an independent motor, with strong cutting force.
3.Spindle adjustment is in the front, easy to operate
4.Electroplating countertops with good wear resistance
5.The lower initiative rollers improves the feeding effect
6.Configured Chint electrical components
7.Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise
8.Pneumatic pressure type feed wheel, adjust the clamping force sectionally,
is good for smooth feeding of wood profile with different thickness
9.Configured auxiliary device for short profile to promote the smooth feed.

VH-M823L
Working width	25-230mm
working thickness	8-160mm
working table length	1970mm
feeding speed	6-36m/min
Main shaft diameter	40mm
Main shaft revolution	6500r/min
Air pressure	0.6MPa
Motor Power
1st bottom shaft	7.5kw
Right vertical shaft	7.5kw
Left vertical shaft	7.5kw
1st top shaft	11kw
Right vertical shaft	7.5kw
Left vertical shaft	7.5kw
2nd top shaft	7.5kw
2nd bottom shaft	7.5kw
Feeding beam lifting	0.75kw
feeding motor	5.5kw
Total power	72.1kw
Cutter diameter
1st bottom shaft	125mm
Right vertical shaft	125-180mm
Left vertical shaft	125-180mm
1st top shaft	125-180mm
Right vertical shaft	125-180mm
Left vertical shaft	125-180mm
2nd bottom shaft	125-180mm
2nd top shaft	125-180mm
Feeding roller diameter	140mm
Dust outlet diameter	140mm
Size of machine	5100x1650x1900
weight	4300kg

Machine detail
1.Casting body
Solid cast iron table is key point why V-HOLD moulder working for life long high precision withou any vibration
2.Hard crome plate and working table
Hard chromed worktable for excellent wearability

3.short device
Equipped with short-material auxiliary device, effectively improve the feeding of short material smooth .
4.Feeding frequency inverter
Digital display, easy to operate, energy saving,protect the machine from wearing because of mechanical transmission.

5.Shaft
Each cutter shaftis assembled and tested under air-conditioned environment and is supported by good quality bearings.The stable-worked shaft guarantees the surface smoothness of finished products.

Application
Working shop
Exhibition
Shipment


FAQ 1,Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price. we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines. 2,We will be protetcted if we are paying for orders? Surely yes,we have been exported 2000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years ****** trade assurance you could rely on,you will be protected very well. 3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine. We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours. 4,What's your production time? we want faster shipping time also. Mostly machine we have in stock, some machine we produce need about 20-30days. make fast shipment always. shipping time depends on shipping company.

---
