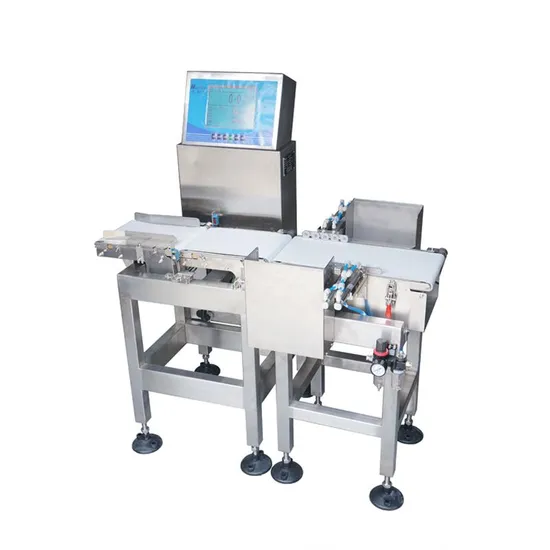

High Speed High Accuracy Macinte Food Grade Conveyor Machine Checkweigher

Product Description

Hight Speed High Accuracy Macinte Checkweigher Scale Sorting Conveyor Machine with Rejector
Provide below information to our sales , our team will support you to choose the right type checkweigher:Tested product
1. Size range: min and max size 2, Weight range: min and max weight
3, Accuracy requirements: +_ g.4, Speed requirements: pcs/min;
Product Description

Main equipment parameters
Model	MXTH-22-03-S
Structure Component	Speed up section + Weighing section + Rejector section
Speed up conveyor belt section size	240mm (L) *130mm (W) (can be customized)
Weighing section conveyor belt size	240mm(L)*130mm(W)
Reject section conveyor belt size	460mm(L)*130mm(W)(can be customized)
Height ( weighing belt to ground)	700mm±50mm,(can be customized)
Control system	NXP 32-bit Dual-core ARM High-speed High-performance Embedded System (independently developed)
Conveyor speed m/min	15~75m/min(Adjustable)
highest speed pc/min	0-100 pcs/min (Related with item length, spacing and precision requirements)
Weighing range	5g~300g
Weighing accuracy g	±0.1g (Precision is related with product size, weight and state, through the volume and working environment vibration and wind)
Minimum display g	0.1g
Preset product parameter Number (formula)	100
Data storage Mode	USB export
Power	AC100-240V,50HZ/60HZ
Rated power	180W
Working environment	-10-45ºC,90%R.H
Machine body material	Whole machine 304 stainless steel
Machine size(mm)	975*580
Machine weight kg	About 90 KG
Main configuration
Touch screen	Highlight, high resolution, 8 inch color touch screen
Weighing sensor	USA SUNCELL Precision sensor
Weighing module	MXT-AD Macinte independent research and development of patented products
Motor	Brushless motor precision machining, concentricity, position accuracy, high transmission efficiency, bearing capacity
Photoelectric sensor	Japan panasonic The photoelectric switch of the opposite light, the accuracy is higher, guarantee no leakage
Control switch	IDEC Emergency start switch, exquisite technology, long working life
Weighing belt	White or blue food grade PU conveyor belt
Motor belt	USA GATES Synchronous belt drive, long service life;
Bearing	Japan NSK High precision, small vibration, durable
Roller	Hard oxide three waist drum aluminum alloy belt roller, automatic correction, wear - resistant skid

Details Images
Whiteshell3-coplor belt buzzing alarm lamp, simple and elegant appearance aesthetic and practical. Using up and down photolectric sensor installation method for thin materiaIs to ensure accuracy,no miss detection. Original AIRTAC pneumatic units durable,good aftermarket. Product Advantage1) Independent intellectual property rights, stable and mature technology.
2) First-class workmanship, professional mechanical design.
3) Good environmental adaptability and stability.
4) Key parts are imported.
5) Safety protection.
6) Accurate and efficient sorting mechanism.
7) Data storage and export and system integration.
8) Power off memory function.
9) Automatic mean sampling function.
10) Humanized operation interface.
11) Simple user Settings.
12) One-key parameter recovery function.
13) Remote assistance function.
14) Optional and customized automation scheme.
Other Models
Certifications
Company ProfileShenzhen Macinte has More than 20 Years of Weighing Industry Experience
We are the only enterprise to obtain the invention patent of
"weighing identification method and system" issued by the State Intellectual Property Office.
Service for a number of the world's top 500 enterprises, domestic listed companies, and widely praised, well known at home and
abroad. Shenzhen Macinte Intelligent Equipment Co., Ltd. was founded in 2002, which is a national high-tech enterprise, shenzhenhigh-tech enterprise, shenzhen double soft enterprise. Main products include automatic weight checking devices, weight testingmachine, weigher sorting machine, online weighing and culling machine, pick to light system, line shaft diverter system, DWSsystem, logistics conveying control system, etc. We have marketing centers, R&D centers and production bases in ShenZhen andChangSha.Our company has an expert team composed of a number of doctors, field application engineers, etc., long-term focus onalgorithm research, application development, industrial applications, has obtained a number of national invention patents. We aimat "professional casting quality, scientific and technological achievements future" ,and walking in the technical front.

---
