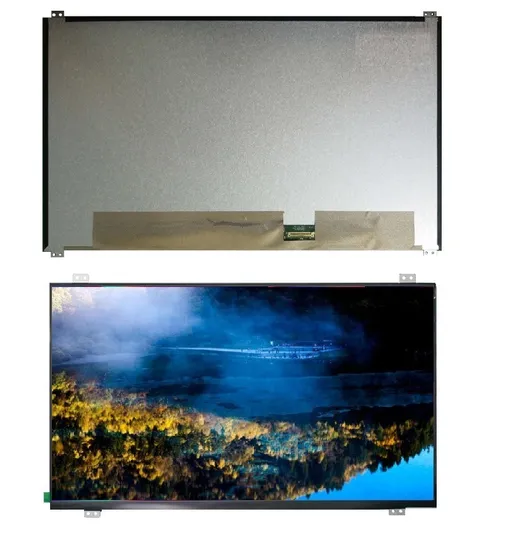

13.3inch IPS LCD Panel 1920*1080 220nits with 30pin Edp Interface (4 suspended holes)

US$50.00-60.00 1,000 Pieces (MOQ)

Basic Info.

Model NO.
RG133X56-105-0301
Touch Screen Type
Resistive
Type
LCM
Response Time
25ms
Viewing Angle
IPS
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Screen Size
13.3"
Resolution
1920X1080
Luminance
220 Nit
Contrast Ratio
1000: 1
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
8524919000
Production Capacity
100, 000/Month

Product Description

13.3inch IPS LCD panel 1920*1080 220nits 30pin EDP interface (4 suspended holes)
Item Contents
LCD Type IPS
Display Color 16.7M
View Direction ALL
Gray Scale Inversion Direction ALL
Operating Temperature -0+50 °C
Store Temperature -20-60 °C
Module Size 305.2*178.1*2.6mm
Active Area(W×H) 293.76*165.24mm
Number of Dots 1920x1080 dot
Interface signal edp
Power Supply Voltage 3.3V
Backlight LEDs(white)
Leds number 56 leds
Interface Pins 30pin
