Rtk Gnss GPS Beidou Quadrifilar Helix High Gain Active Dielectric Antenna U-Ggbg7151

Product Description

Product Description Features
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance
Application
Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.

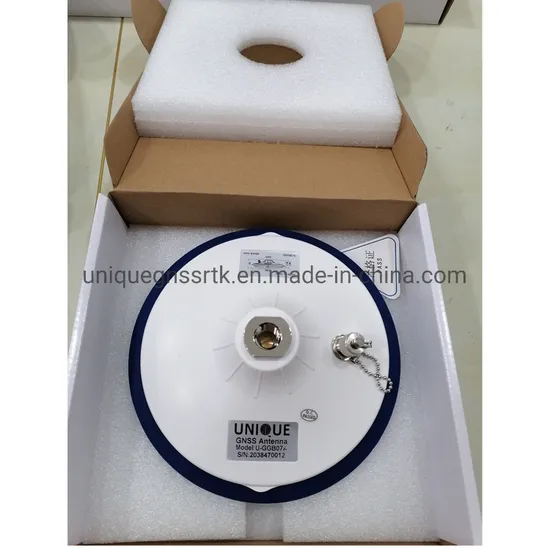

Detailed Photos
Specification

Antenna Specification
Frequency Range	GPS	GLONASS	Beidou	Galileo
	L1/L2	G1/G2	B1/B2/B3	E1 E2b
Gain at Zenith	L1≥5.5dBi	G1≥5.0dBi	B1≥5.0dBi	E1≥5.0dBi
	L2≥5.0dBi	G2≥5.0dBi	B2≥5.0dBi	E2b≥4.5dBi
			B3≥4.5dBi
Polarization	RHCP
Azimuth Coverage	360o
Impedance	50Ω
Output VSWR	≤1.5
Axial Ratio	≤3dB
Phase Center Error	<2mm
LNA Specification
LNA Gain	40±2dB
Noise Figure	≤1.8dB
Input VSWR	≤2.0
Output VSWR	≤2.0
Group Delay	≤5ns
Work Voltage	3~5.5V
Current Consumption	≤45mA
Mechanical Specification
Dimension	D 150mm H 63.7mm
Connector	TNC-K
Weight	425g
Environmental Specification
Operating Temperature	-45ºC~+70ºC
Storage Temperature	-55ºC~+85ºC
Humidity	95% Non-Condensing
Waterproof	IP67

Packaging & Shipping
Packaging
Our Advantages The warranty period is 12 months. Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of thewarranty period. Company Profile

---
