Basic Info.
Model NO.
OCE-275/OCP-275/OCH-275
Type
Pipe Beveling Machine
Automatic Grade
Automatic
Power Source
Electric&Pneumatic&Hydraulic
Working Range(O.D)
5-10 Inches (125-275mm)
Pipe Thickness
Less Than 30mm
Model No.
Oce-275/Ocp-275/Och-275
Transport Package
Wooden Carton
Specification
770mm*710mm*280mm
Production Capacity
30 Set/Sets Per Month
Product Description

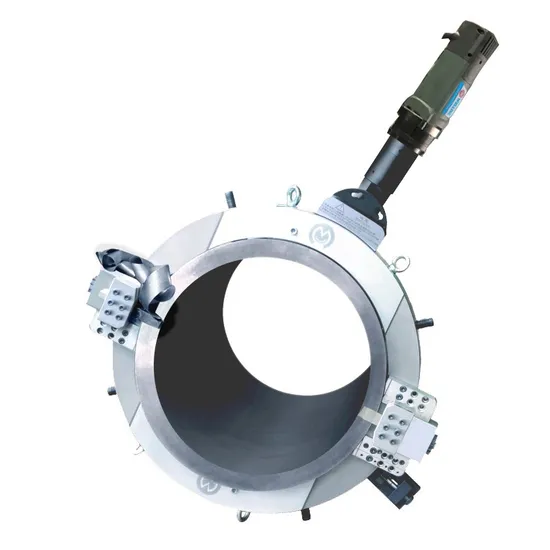

Split valve cutting and beveling machine ----this series machine is ideal for all types of pipe cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single cut/bevel, single point, counterbore, and flange facing operations, as well as weld end preparation on the open-ended pipe. Ranging from 1 to 56 inches O.D. (DN 25-1430mm), on most wall thicknesses and materials.
External clamp pipe cutting and beveling machine, the body can be divided into two petals, and installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing, outer circle processing, etc. The processing bevel angle can be selected at will, and the tool holder can move automatically.
Different driving methods, it is divided into a small number: electric type, hydraulic drive, and pneumatic, which convert different pipe diameter requirements. Extensive replacement of oil, petrochemical, beer, beverage and dairy products, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power, and other industries after cutting, and directly welding; at the same time, non-standard specifications can be customized according to customer needs, cutting non-standard grooves
The machine body adopts the advanced forging process and heat treatment process of the Yangtze River Delta to ensure the strength and hardness of the machine body. At the same time, the precision turning CNC lathe is used to ensure processing accuracy. Product Features
· Split frame
The machine can be split to mount around the outside diameter of the in-line pipe
· Cut or Cut/Bevel simultaneously
Cuts and bevels simultaneously leave a clean precision prep ready for welding
· Cold cut/Bevel
Hot torch cutting requires grinding and produces an undesirable heat-affected zone
Cold cutting/beveling improves safety, and can't affect pipe material
· Automatic Feed
Automatic Working, High efficiency, Decreased manual cost
· Variety Driven Ways
Electric Driven; Pneumatic Driven; Hydraulic Driven(Can be chosen).
Applicable Environment
· Engineering case
· Site construction of high-sulfur pipelines
· On-site construction of TUHA Oil Field
· Natural gas storage pipeline project
· PetroChina Pipeline Project
· China-Russia pipeline project
· Inspection and repair of pipelines in large power plants
· Emergency repair of nuclear industry equipment
· Project of west gas transporting to east China
Product Parameters
Product working information
Electric-Driven OCE SERIES |
Model | OCE-89 | OCE-168 | OCE-230 | OCE-275 | OCE-305 | OCE-325 | OCE-377 | OCE-426 | OCE-457 | OCE-508 | OCE-560 | OCE-610 | OCE-630 | OCE-660 | OCE-715 | OCE-762 | OCE-830 | OCE-914 | OCE-1066 | OCE-1230 | OCE-1430 |
Motor Power | 1500W-2000W(OCM 2400W) |
Voltage | 220-240V |
Frequency | 50 / 60 HZ |
Working Current | 6A |
Max Wall Thickness | ≤30mm ( standard tool slide ) |
Working Range in mm(ID-OD) | 25-89 | 50-168 | 80-230 | 125-275 | 150-305 | 168-325 | 219-377 | 273-426 | 300-457 | 355-508 | 400-560 | 457-610 | 480-630 | 508-660 | 560-715 | 600-762 | 600-830 | 762-914 | 914-1066 | 1066-1230 | 1230-1430 |
Working Range in inch (ID-OD) | 1-3 | 2-6 | 3-8 | 5-10 | 6-10 | 6-12 | 8-14 | 10-16 | 12-18 | 14-20 | 16-22 | 18-24 | 20-24 | 20-26 | 22-28 | 24-30 | 26-32 | 30-36 | 36-42 | 42-48 | 48-56 |
Rotate Speed(r/min) | 42 | 22 | 15 | 14 | 13 | 13 | 12 | 12 | 12 | 12 | 12 | 11 | 11 | 11 | 11 | 11 | 10 | 10 | 10 | 10 | 8 |
|
Pneumatic-Driven OCP SERIES |
Model | OCP-89 | OCP-168 | OCP-230 | OCP-275 | OCP-305 | OCP-325 | OCP-377 | OCP-426 | OCP-457 | OCP-508 | OCP-560 | OCP-610 | OCP-630 | OCP-660 | OCP-715 | OCP-762 | OCP-830 | OCP-914 | OCP-1066 | OCP-1230 | OCP-1430 |
Air Pressure | 0.8-1.0Mpa ( Tested at the entrance to the motor ) |
Air Consumption | 1500-2000L/min |
Max Wall Thickness | ≤30mm ( standard tool slide ) |
Working Range in mm(ID-OD) | 25-89 | 50-168 | 80-230 | 125-275 | 150-305 | 168-325 | 219-377 | 273-426 | 300-457 | 355-508 | 400-560 | 457-610 | 480-630 | 508-660 | 560-715 | 600-762 | 600-830 | 762-914 | 914-1066 | 1066-1230 | 1230-1430 |
Working Range in inch (ID-OD) | 1-3 | 2-6 | 3-8 | 5-10 | 6-10 | 6-12 | 8-14 | 10-16 | 12-18 | 14-20 | 16-22 | 18-24 | 20-24 | 20-26 | 22-28 | 24-30 | 26-32 | 30-36 | 36-42 | 42-48 | 48-56 |
Rotate Speed(r/min) | 42 | 22 | 15 | 14 | 13 | 13 | 12 | 12 | 12 | 12 | 12 | 11 | 11 | 11 | 11 | 11 | 10 | 10 | 10 | 10 | 8 |
|
Hydraulic-Driven OCH SERIES |
Model | OCH-89 | OCH -168 | OCH -230 | OCH -275 | OCH-305 | OCH -325 | OCH -377 | OCH -426 | OCH -457 | OCH -508 | OCH-560 | OCH -610 | OCH-630 | OCH-660 | OCH-715 | OCH -762 | OCH -830 | OCH -914 | OCH -1066 | OCH -1230 | OCH-1430 |
Power Supply | 380-415 V 3ph 50/60HZ |
Power | 12.5 Mpa 2-60L/min |
Max Wall Thickness | ≤30mm ( standard tool slide ) |
Working Range in mm(ID-OD) | 25-89 | 50-168 | 80-230 | 125-275 | 150-305 | 168-325 | 219-377 | 273-426 | 300-457 | 355-508 | 400-560 | 457-610 | 480-630 | 508-660 | 560-715 | 600-762 | 600-830 | 762-914 | 914-1066 | 1066-1230 | 1230-1430 |
Working Range in inch (ID-OD) | 1-3 | 2-6 | 3-8 | 5-10 | 6-10 | 6-12 | 8-14 | 10-16 | 12-18 | 14-20 | 16-22 | 18-24 | 20-24 | 20-26 | 22-28 | 24-30 | 26-32 | 30-36 | 36-42 | 42-48 | 48-56 |
Rotate Speed(r/min) | 42 | 22 | 15 | 14 | 13 | 13 | 12 | 12 | 12 | 12 | 12 | 11 | 11 | 11 | 11 | 11 | 10 | 10 | 10 | 10 | 8 |
Weight and Packing info
Detailed Photos
Detailed photos of products for OCE, OCP, and OCH
Photos about Beveling Tool Bits
Photos about product application, packing, and customer feedback
Company Profile
Henan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production, and sales of piping machines and tools related to pipes.
In line with the business tenet of "piping solutions expert" and the mission of "making work easy and efficient", we have independently developed and produced a series of products that customers love. Our product series mainly include pipe-cutting machines, pipe-beveling machines, pipe-bending machines, pipe threading machines, HDPE pipe machines, and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel, and plastic pipes.Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.
>>
