Automatic 3D Wheel Aligner Auto Repair Machine with CE

Product Description

Automatic 3D Wheel Aligner Auto Repair Machine with CE
Sincerely looking for contracted distributor in different country , thanks for kind contacting !
Wheel alignment, sometimes referred to as breaking or tracking, is part of standard automobile maintenance that consists of adjusting the angles of the wheels so that they are set to the car maker's specification. The purpose of these adjustments is to reduce tire wear, and to ensure that vehicle travel is straight and true (without "pulling" to one side). Alignment angles can also be altered beyond the maker's specifications to obtain a specific handling characteristic. Motorsport and off-road applications may call for angles to be adjusted well beyond "normal" for a variety of reasons .
All new vehicles leave the factory with their alignment checked and adjusted. Usually the technician paints the heads of the adjustment hardware to show it has been set, also to show if it has moved later on. It is advisable to do the alignment of the car after the first 5000 km, since all the suspension get set. Failure to do this may result in the camber and toe specifications drifting outside the manufacturer's limit. This may lead to vehicle pulling and tire wear
Product description

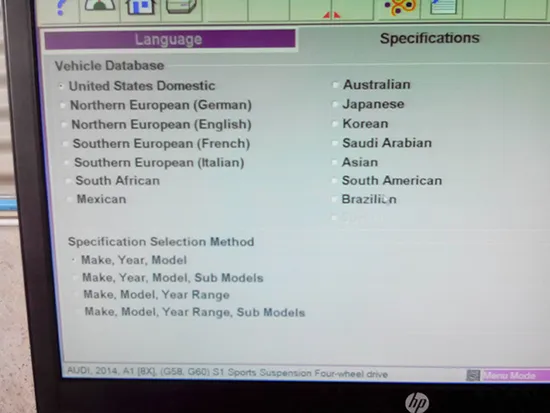

Windows 7, machine with self-owned intellectual property ; Automatic adjustment for height of camera beam , automatic tracking the target plates ; Automatic checking for height of car lift , automatic calibrate the camera ; With black-box functions , all files can be saved for future analysis ; Quicker running for alignment with guiding menu ,can read database within 3 minutes ; 3D animated measurement , easy for training and operate ; Available for OEM vehicle database ; Manual enter height of vehicle ; " MKS" measurement special for Benz ; Available for single-wheel positioning ,two wheel positioning , four wheel positioning ; 26kinds of language for different countries and districts ; Adjustment function for FORD bushing ; Instruction function for North star shims ; Measurement for Caster Trail ; Measurement for Scrub Radius & SAI ; Cradle Adjust of motor ; A-Arm resetting on turntable ; Adjustment for Camber at Zero Toe Drag Link Adjust to ensure the steering wheel in the middle Single Tie Rod Adjust
Technic data

Item	Measurement Accuracy	Measurement Range	Total Measurement Range
Camber	±0.01°	±8°	±8°
Caster	±0.05°	±19°	±19°
Front wheel KPI	±0.02°	±19°	±19°
Total Toe	±0.01°	±2°	±8°
Rear wheel thrust angle	±0.01°	±2°	±4°
Toe-out on turn	±0.08°	±2°	±40°
Axle offset of Rear wheel	±0.02°	±2°	±4°
Wheel tread difference	±0.03°	±2°	±8°
Front setback	±0.02°	±2°	±4°
Rear setback	±0.02°	±2°	±4°
Wheel tread	±0.64cm(±0.25cm)	<265cm(<105in)	<265cm(<105in)
Wheelbase	±0.64cm(±0.25cm)	<533cm(<210in)	<533cm(<210in)

Standard accessories include , Camera beam x 1 Computer x 1 Printer x 1 Turnplate x 2 Brake lock x 1 Steel wheel lock x 1 Target plate x 4 Wedge x 1 Hanger for clamp x 4
Packing : total 3cartons ,250kgs , 1.8cbm
1)1840x765x750mm , 1ctn
2) 2900x370x320mm , 1ctn
3) 2900x370x320mm , 1ctn
Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
Free parts will be sent by courier or post if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE
