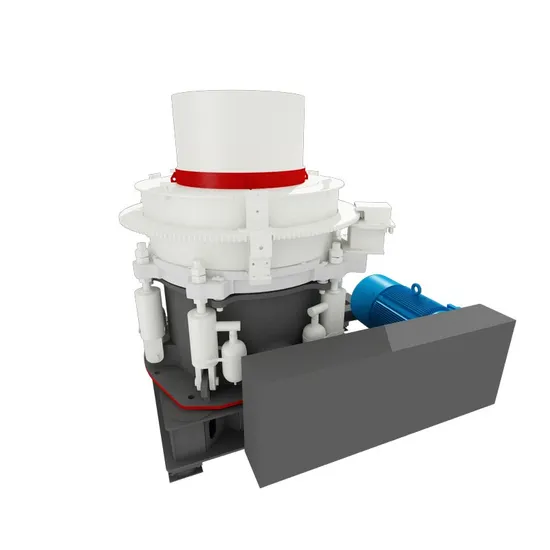

High Casing Strength Precision Machining Integrated Lubrication Multi Cylinder Hydraulic Cone Crusher with Intelligent Systems for Construction

Product Description

High Casing Strength Precision Machining Integrated Lubrication Multi Cylinder Hydraulic Cone Crusher With Intelligent Systems For Construction Product Information
This series of products integrates mechanical, hydraulic, electrical, automation and other technologies, and has the characteristics of high crushing efficiency, low production cost, convenient maintenance and adjustment, excellent crushing product particle shape, etc. It is suitable for crushing various ores and rocks with medium and above hardness, such as limestone, iron ore, river pebbles, non-ferrous metal ores, granite, basalt, limestone, etc., and is widely used in mining, chemical industry, road and bridge construction, construction and other fields.
Technical Details

Model	Crushing Cavity Pattern	Feed port size(mm)	Minimum discharge port size (mm)	Motor Power(KW)	Pocessinh Capacity (t/h)
HPT-300	EC	230	25	250	230-440
	C	210	20	250	200-380
	M	150	15	250	150-320
	S	105	10	250	115-240
HPT-400	EC	295	30	315	295-630
	C	250	25	315	295-560
	M	200	20	315	255-490
	S	133	14	315	185-370

Advantages
1. Fixed-axis structural design, strong bearing capacity
Fixed main shaft, more compact structure, small size, high efficiency, strong equipment bearing capacity, standard floating mounting base, small equipment foundation investment, saving time and effort.
2. Laminated crushing chamber design, uniform particle shape
The design adopts the principle of inter-particle lamination, using the mutual extrusion between materials to improve the crushing efficiency and fine material ratio, reduce needle-like, and reduce the steel consumption of vulnerable parts.
3. Integrated hydraulic lubrication, air cooling protection
Use a unique thin oil lubrication system to increase the service life of the equipment, choose a well-known domestic brand air cooler to avoid equipment damage caused by water-oil mixing caused by water cooling, and high-performance contact labyrinth seals are five-wear, which is beneficial to ensure the cleanliness of the lubricating oil.
4. The mortar wall is free of fillers and is quick and easy to replace
The assembly surface is specially designed and precision-machined on a special machine tool. The mortar wall and the crushing wall do not require fillers and are easy to replace.
5. Advanced sliding bearing and spiral bevel gear design
The spiral bevel gear transmission is adopted, which has low noise and long life. The tin bronze bushing sliding bearing design can maintain ultra-high load capacity in high dust and high impact environment, and the production cost is low.
6. High degree of automation, safer equipment
The automated remote control system is adopted to monitor the core parameters such as temperature, pressure, and current in real time. The hydraulic system is convenient and reliable, and the overload protection is safe and effective. The temperature sensor is installed to accurately detect the oil temperature to ensure the stable operation of the equipment.
Process
Applicable Materials
Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.
Packing
Company Profile
Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. Adhering to the business philosophy of "honesty, pragmatism and innovation", and focusing on the product orientation of "intelligence, high efficiency, energy conservation and environmental protection," with 30 years of innovative development, Sanming's products now include stone crusher and screening equipment, casting spare parts, intelligent control systems, and EPC general contracting projects, covering numerous industries such as mining, building materials, highways, railways, bridges, coal, metallurgy and chemical industry. It has become a national high-tech company.
Certification
Main Product
Workshop
Finished product workshop
Production workshop
Foundry workshop
Test platform
Create a complete equipment test site for customers to more intuitively display product effects.Including jaw crusher, cone crusher, impact crusher and other machines
Project Case
After Sales Service
We win market respect with quality and win customer trust with professional services.
We carefully inspect and accept each production line, so that customers can put it into production with confidence.
We carry out quality tours all year round, and always adhere to the win-win development concept of "same heart, same virtue, same trade, same sharing".

Exhibition
FAQ
1.Can I have a sample order?
A: Yes.
2.What about the leading time ?
A: 15 working days.

3.Do you have any MOQ limit ?
A: MOQ is 1 set.

4.Can you provide OEM and ODM services?
A: Yes.

5.Will you provide pre-sale services ?
A: Yes. SAMYHI consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
6.Is our after-sales service excellent ?
A: Yes. SAMYHI's skilled technicians are available to assist with onsite installation,commissioning & training on request.
7.Will we provide technical support ?
A: SAMYHI provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
