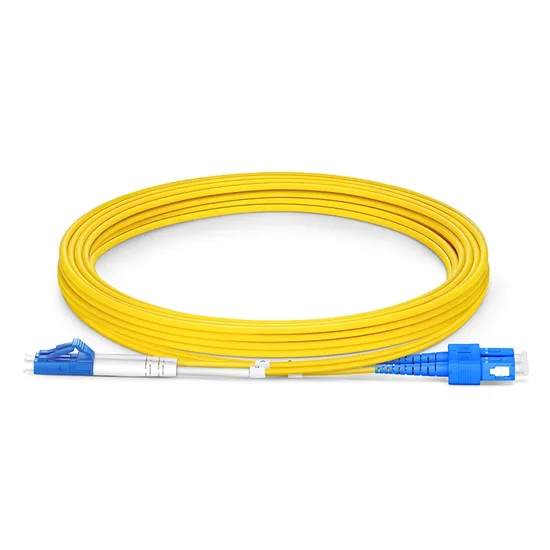

LC-to-Sc Duplex OS2 Singlemode 2.0mm Fiber Optic Patch Cable, 3m

Product Description

Premium Quality and Cost-saving 9/125μm Single Mode Bend Insensitive Fiber Optic Cable The 9/125μm OS2 single mode bend insensitive fiber optic cable is of less attenuation when being bent or twisted compared with that of traditional optical fiber cables. This can make the installation and maintenance jobs more efficient. It saves more spaces for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any other site works where fiber patch cables are needed.
This fiber optic cable is ideal for 1G/10G/40G/100G/400G Ethernet connections. It can transmit data up to 10km at 1310nm, or 40km at 1550nm.
Specifications:

Connector Type	LC UPC to SC UPC	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Count	Duplex (2 cores)	Fiber Mode	OS2 9/125μm
Wavelength	1310/1550nm	Polarity	A (Tx) to B (Rx)
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Min. Bend Radius(Fiber Core)	10mm	Min. Bend Radius(Fiber Core)	10/5D (Dynamic/Static)
Attenuation at 1310nm	0.36 dB/km	Attenuation at 1550nm	0.22 dB/km
Cable Diameter	2.0mm	Operating Temperature	-20~70°C

10/5D Min. Bend Radius
The G.657.A1 fiber allows tightercable bends
for slack storage and routing
90-150N Tensile Strength

Zirconia Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion cycles

---
