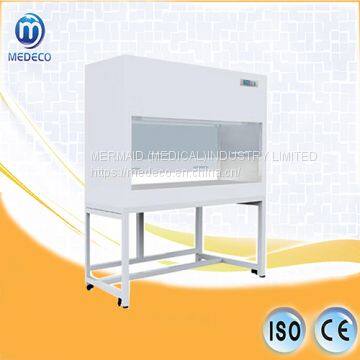

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Model
| MEBS-DSC
| MEBS-SSC
|
External Size (W*D*H)
| 1040*660*1770mm
| 1440*660*1770mm
|
Internal Size (W*D*H)
| 940*560*545mm
| 1340*560*545mm
|
Work Surface Height
| 750mm
|
Display
| LED Display
|
Airflow Velocity
| Average of 0.3~0.5m/s
|
Material
| Main Body: Cold-rolled steel with anti-bacteria powder coating
|
Work Table: 304 stainless steel
|
Pre-filter
| Polyester fiber, washable
|
HEPA Filter
| 99.999% efficiency at 0.3um
|
Noise
| | Front Window
| Manual, 5mm toughened glass, anti-UV
|
Max Opening
| 310mm
| 310mm
|
UV Lamp
| 18W*1
| 30W*1
|
Emission of 253.7 nanometers
|
LED Lamp
| 12W*1
| 16W*1
|
Consumption
| 350W
| 600W
|
Caster
| Universal caster with leveling feet
|
Power Supply
| AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ
|
Standard Accessory
| LED lamp, UV lamp*2, Base stand
|
Optional Accessory
| Electric height adjustable base stand
|
Gross Weight
| 150kg
| 186kg
|
Package Size (W*D*H)
| 1190*890*1340mm
| 1590*890*1340mm
|
