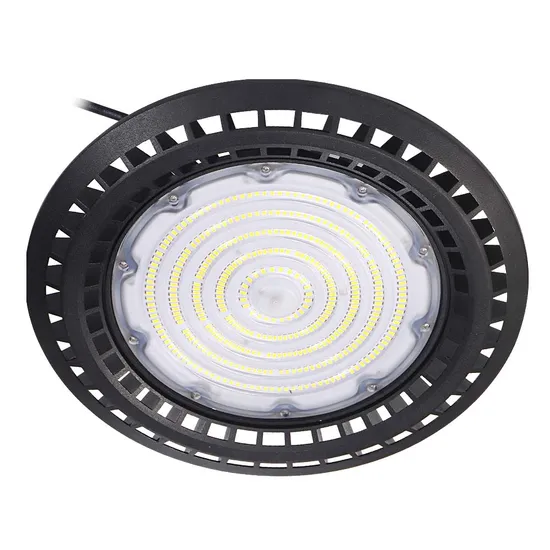

Waterproof Dimmable TUV/ETL/Dlc/UL Certification 50W/80W/100W/120W/150W/200W/300W/400W/500W/600W/1000W/1500W LED High Bay Light

Product Description

Product Advantages:
1. Lumiled / Osam SMD2835 LED, 150-200LM/W
2. CE UL driver, 100-277VAC/100-240VAC/200-240VAC
3. Simple and elegant appearance, anodized housing, durable
4. Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
5. Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
6. Two kinds of driver shape for choice: Round driver or Rectangle driver bracket
7. Optional Function: 1-10V dimmable, daylight sensor, motion sensor, microwave sensor
8. Installation Methods: suspending ring, suspending chain, supporting rod, hook, bracket (can be adjustable 180 degree)
9. Certifications: SAA, CE, RoHS
10. Warranty: Phili ps driver 5 years, UL CE driver 3 years
Technical Specifications
LED type: Lumiled / Osam SMD2835, LM80 TM21 certified, Up to150-200lm/W
Driver brand: Phili ps
Power: 50W, 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150-200LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours

Power	50W	100W	150W	200W	240W
Power consumption	50W±5W	100W±5W	150W±5W	200W±5W	240W±5W
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Power Frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Luminous Flux	7500LM (CCT=5000K)	13500LM(CCT=5000K)	22500LM(CCT=5000K)	27000LM(CCT=5000K)	27000LM(CCT=5000K)
Fixture Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
LED Type	Lumiled / Osam SMD2835
PowerSupply	Phili ps
System Efficacy	150LM/W 190LM/W (CCT=5000K)
CCT	3000K, 4000K, 5000K, 6000K
Beam Angle	60/90/120°
CRI	>80Ra
System Efficiency	>90%
LED Junction Temperature	<75ºC(Ta=30ºC)
Storage Temperature	-40~+70ºC
Operating Temperature	-30~+50ºC
Working Environment	15-90%RH
Power Efficiency	>93%
Power Factor	>0.93
Total Harmonic Distortion	<15%
Certificates	UL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span	>50000Hrs(Ta=30ºC @L70)
Ingress Protection	IP65
Quality Warranty	5years
Installation	Lifting, Tube, Wall Installation

Product Description
PF>0.95, CRI >80Ra, THD<15%
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumiled / Osam SMD2835 LED, 150-200lm/w
Meanwell driver, UL CE driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminum, Optical lens, stainless screws
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable.
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost.
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
All stainless screws prevent bad situation.
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances
Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount
Applications
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

---
