Chinese Brand Lq20 EPA Certificate 2ton Farm Digging Machine Crawler Excavator

Product Description

Brief Indruction

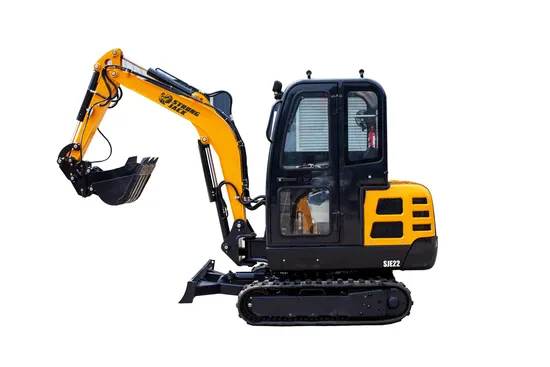

The crawler excavator is a compact excavator ,which matched KUBOTA national III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system, with steel track, with broken pipeline system , the machine can changed track from steel to rubber. Can telescoping the track frame.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Basic specifications

ENGINE
Emission Standard	Euro V /EPA
Make	KUBOTA
Model	D1105
Power /Rotation speed	14kw(19HP)@2000rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5/3.5km/h
Width of track shoe	230mm
Number of track shoe per side	38pcs
Number of upper roller per side	1
Number of bottom roller per side	3
PERFORMANCE PARAMETER
Standard Bucket capacity	0.07m³
Swing speed	9 rpm
Max. Grade ability	35°
Maximum Bucket digging force	18KN
Maximum Arm digging force	11KN
Hydraulic system pressure	21.5Mpa
Machine weight	2000kg
MACHINE SIZE
Overall dimension (L*W*H)	3555mm*1300mm*2290mm
Axle base(Track length on ground)	1230mm
Track gauge	760mm
Min.Ground clearance	150mm
Swing radius at tail	650mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2440mm
Maximum Digging depth	2400mm
Maximum Vertical digging depth	2025mm
Maximum Digging radius	4040mm
Minimum swing radius	1610mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	270mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Diagrammatic drawing
CONDITIONS:
QUOTATION TERMS: Based on FOB Qingdao or Tianjin port. 30 days validity since issuing date. PACKING DETAILS: 4 pcs in 20GP container. 8 pcs in 40GP container. Bulk cargo or RO-RO Nude DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
PAYMENT TERMS:
By T/T: 30% as deposit and the balance paid after finishing production before shipment ACCESSOORIES:
Tools box, operator's manual and a list of spare parts.
WARRANTY:
Generally, 6 months or 1000 hours since first receiving the goods, whichever first
ORIGINAL: China
OPTIONS: Rubber track OPTIONAL ATTACHMENTS: Breaker Log grapple Auger

---
