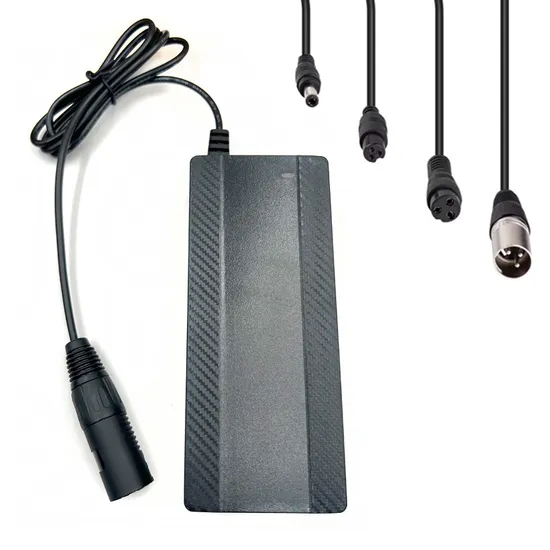

Electric Bike E-Scooter Motorcycle 54.6V Lithium 2A 3A 4A 5A 48V Li Ion Charger 48V DC LiFePO4 Fast Battery Charger

US$7.90-9.50 100 Pieces (MOQ)

Basic Info.

Charger Application
Home Applications, E-Bike, E-Scooter, E
Nominal Voltage
48V
Charger Style
Automatic
Compatible Battery Type
18650
Certification
KC, PSE, RoHS, TUV, CB, CE, GS, ETL, SAA, C-Tick, CB, Ukca
Socket Type
for Br, E.U., USA, UK, Au, Jp, Kr, etc
Recyclable
Non-Recyclable
Protection
Ocp, Ovp, Over-Charging, Short Circuit Protection
Input
100-240V/2.5A
Output
54.6V/2A
Material
PC Fireproof Material, ABS
AC Plug
Us EU Au UK Ar Jr Kr Brazil Argentina
AC Socket
C6 C8 C14
Energy Efficiency
DOE VI
Certificates and Approvals
Kc ETL CE GS PSE SAA Ukca, etc
Warranty
3 Years
AC/DC Cable
1m/1.5m/Customized
DC Connector
5521, Aviation Plug, Xt60, Xiao Mi, XLR, etc
Operating Temperature
0~40ºC
Storage Temperature
-20ºC-85°c
Mtbf
50000 Hours
Color
Black or White
Transport Package
PE Bag Inside, Independent Box Outside
Specification
155.6*71*36.5mm
Trademark
GYX
Origin
Guangdong China
HS Code
8504409999
Production Capacity
300000PCS/Month

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

Product Description
Input voltage range 100-240VAC
frequency range 47-63Hz
standby power 0.3W
efficiency DOE VI /V
AC input current 2.5A max at 100VAC at full load
inrush current 30A Max. @110Vac/60Hz
60A Max. @230Vac/50Hz
Output DC voltage range 54.6V max
voltage tolerance ±5%
load current 2A max
range power 109.2W max
line regu lation ±1%
load regu lation ±5%
AC plug US EU UK AU KR BR AR others
DC connector 5521,5525,aviation plug,C13,Anderson(50A),Lotus plug,XRL(CANNON),XT60,XT90,cigarette lighter plug,etc
DC cord 1m/1.2m /1.5m / 1.8m /2m /3m,other as your requirment
Operating temperature 0°C-40°C
Storage temperature -20ºC-85°C
Protection over voltage protection,over current protection,short circuit protection
Safety approvals U L62368/ U L60950/ U L1310/U L 60601/CE/ GS/ SAA/ KC KCC/ PSE/ RCM
MTBF 50000 hours
Warranty 36 months
LED indicator light red---in the charging green---fully charged/no load
Test 100 fu ll load burn-in test
Application LED lighting, home applications,E-bike,E-scooter,E-bicycle,E-tools,electric drift trike battery charging,etc.
Package PE bag inside,white box and carton outside
Carton Size 46*39*26cm

Certificate
FAQ 1.When can I get the quotation ?
GYX: within 24 hours.If you are in a hurry, please call us or email us.
2.What about the lead time for mass production ?
GYX:About 15 days.
3.What about the warranty of your products ?
GYX:We offer 3 year warranty for all the products.
4.How long has your company been in business?
GYX:15 years, and we have 15years experience in lithium battery charge.
5.Does your company have U L certification?
GYX:Yes, we have a lot of U L certifications for different items, and our company are the U L Standard Technical Panel Member.
6.What is your factories capacity for power supply & charger?
GYX:10000~15000pcs per day.
7.What is your payment method?
GYX: T/T in advance, Paypal , Western Union,Pay on ****** and etc.
