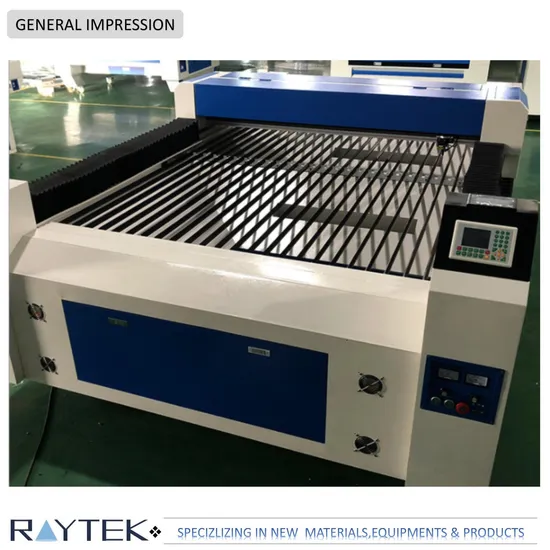

CO2 Laser Engraving Machine/Carbon Dioxide Laser Cutting/Stainless Steel Laser Cutting

Product Description

General Introduction:
Carbon dioxide(CO2) laser tube is a gas molecular laser, the working material is CO2 gas, and the auxiliary gases are nitrogen, helium, xenon and hydrogen. Because the energy conversion efficiency of this laser is as high as 25%, it is often used as a laser with high power output. The wavelength of carbon dioxide laser is 10.6 microns, which is impossible to see infrared light, has good stability and is widely used.
Products Name:
Carbon dioxide(CO2) laser tube/CO2 laser tube/CO2 laser cutting machine
Working Principle & Characteristics:
The discharge tube of CO2 laser is filled with CO2, N2, he and other mixed gases, and its ratio and total pressure can vary within a certain range (generally: CO2: N2: he = 1:0.5:2.5, and the total pressure is 1066.58pa). Any molecule has three different forms of motion, one is the motion of electrons in the molecule, which determines the electronic energy state, and the other is the vibration of atoms in the molecule, Since atoms vibrate periodically around their equilibrium position, this motion determines the vibrational energy state of molecules. Third, the rotation of molecules determines the rotational energy state of molecules. CO2 laser uses the vibration of CO2 molecules and the transition between rotational energy levels to produce laser to cut materials.
Main Characters:
The cutting machine has good cutting effect
High cutting precision
Fast cutting speed
Can work offline
After cutting, the edge is smooth without burr, and secondary processing is not required
Suitable Materials:
Wood products, paper, leather, cloth, plexiglass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo products and other non-metallic materials.
High power carbon dioxide laser can also cut metal materials.
Applications:
This type of machine is suitable for clothing, leather, cloth toys, computer embroidery and cutting, electronic appliances, models, handicrafts, advertising decoration, packaging and printing, paper products, metal processing and other industries.
Basic Technical Data:

TECNHICAL REQUEST	DESCRIPTION AND DATA
WORK TABLE SIZE	1300*900MM
LASER POWER	300W
TRANSMISSION SYSTEM	Imported steel strip belt/imported ball screws
MAX. RUNNING SPEED	25M/MIN
X/Y LOCATION PRECISION	0.1MM/M
X/Y REPEATED LOCATION PRECISION	+-0.1MM
POWER SUPPLY	AC220V+-10% 50HZ
MACHINE GROSS POWER	<=2.5KVA
RUNNING TEMPERATURE	0-40ºC
RUNNING HUMIDITY	<90%
FORMATS	CDR,BMP,PLT,GPEG,DXF,DST,ETC
APPLIED MATERIALS	300W MAXIMUM CUTTING THICKNESS: Carbon Steel: 0.5-3mm(Non Production Only) Stainless Steel: 0.5-3mm (Non Production Only) Acrylic: 30mm MDF: 15mm Plywood: 15mm And other non-metal materials

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our laser machines products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
