Basic Info.
Transport Package
Hard Tube or PE Bag
Specification
1000*1000; 20*20; 650g/m2
Production Capacity
50000000 M2
Product Description
DERFLEX Coated Tarpaulin
Specifications
Material: 100% Polyester yarn with PVC Coating
Weight: 300gsm ~ 1500gsm
Width: 1200 ~ 51000 mm
Length: 10~100m
Thickness: 0.45mm~1.5mm
Size: As per request
| Inspection item(Unit) | Normal Value and Allowance | Experimental value | Reference standard |
| Mass per unit(g/m²) | ≥400 | 443 | GB/T4669-2008 |
| Hydrostatic pressing(kPa) | ≥50 | ≥50 | FZ/T01004-2008 |
| Resistance to blocking | Tolerance to mild adhesion | Non-adhesion | FZ/T01063-2008 |
| Resistance to temp.(-25°C×3min) | Non-delamination, non-break | non-break | FZ/T01007-2008 |
Breaking strength (N/5×20cm) | Longitude | ≥1000 | 1980 | GB/T3923.1-1997 |
| Latitude | ≥1000 | 1480 |
Tear strength (N) | Longitude | ≥40 | 163 | GB/T3917.3-1997 |
| Latitude | ≥35 | 77 |
| Flame resistance | longitude | Longitude | ≤15 | 0.2 | GB/T5455-1997 |
| Latitude | 0.2 |
| Afterglow time(S) | Longitude | ≤15 | 0.0 |
| Latitude | 0.0 |
| Damaged length(mm) | Longitude | ≤150 | 102 | |
| Latitude | 118 |
| Meltdown cast | Non-tolerance to burn of absorbent cotton or flame resistance | Not give rise to burn of absorbent cotton or smoldering | |
*Above test report is DERFLEX DG1122 based on 650gsm PVC coated Tarps.
DERFLEX Tarpaulin Features:
1. Laminated technology & Hot-melt Coating & Knife coating technology
2. Outstanding tearing strength for welding
3. Flame retardant character (optional),B1 ;M1,
4. Temperature resistance: -20--70
5. Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof
6. Anti ultraviolet treatment(UV).(optional)
7. Acrylic treatment (optional).
Application:
1. Rain and sunshine shelter, playground,
2. Army tent, carriage tent and house building
3. Amusement device
4. Construction structure
5. Truck cover, Top roof and side curtain
6. Our door event tent(blockout)
Color Available (DERFLEX tarpaulin):
We can make any color according to RAL, Pantone, or Sample.
Photographic stage background fabric;
Product Name: Knife coated tarpaulin fabric ; Photographic stage background fabric
Specification:500D/18*20,1000D/20*20,1000D/30*30 etc
Weight:550G/580G/600G/900G(±20gsm) etc
Width:1.02 - 3.20m

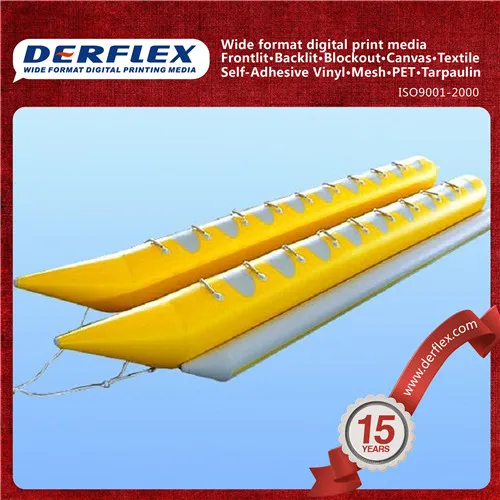

Application: It features light weight, high intensity, bright colour, long working life, good flexibility, sound colour fastness, and anti-flame, anti-cold and anti-age abilities. It is mainly used in sports halls, recreational facilities, carriage, man-made pool, life belt and kayaking.
DERFLEX product PVC tarpaulin has the following characteristics: 1. to prevent mildew; 2. To prevent discoloration outdoor aging (anti-UV and UV light); 3. Excellent weldability, very durable coating The excellent ductility; 5. Strong tear resistance and peeling. 6. We can also achieve fire retardant standard B1, M1, 7. Special strengthening tear resistance processing, based on the fabric, 8. The acrylic surface coating, etc. 9, we can European environmental standards 6P
>>
