Metal Aluminium Milling Drilling Tapping Boring Horizontal Sieg Lathe Machine

Product Description

Product Description
(MADE IN SHANGHAI !!! SUPER GOOD QUALITY ONLY!!!)

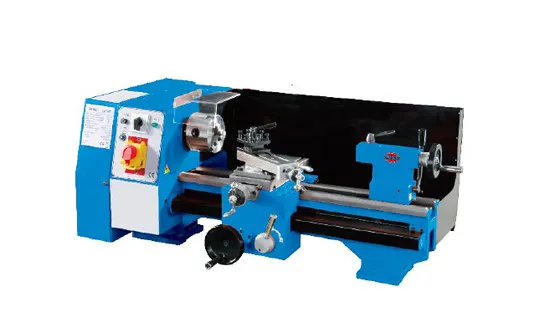

High End 1000W Powerful Brushless Motor Bench Metal Lathe SP2104
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
Quick Detail:Processing material: aluminum, copper, metal, wood, plastic, etc
Workpiece length: 410mm
Swing over bed: 210mm
Spindle bore: 20mm
Description:
SP2104 variable speed bench lathe machine is widely used 210mm small conventional lathe machine. Features or advantage of lathe machine are as below: Chuck guard is with automatic power off. 1000W high torque brushless motor, Near silent running Belt drive Gear drive is available. Integral splash guard Electronic variable spindle speeds Full range of accessories available Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed. Good quality and reasonable factory price. Made in China, supplier from Shanghai China. Good aftersale service. Power supply could be customized 110v/220V. All machines have to pass the checklist of the machine precision before shipment
Product Parameters

Model	SP2104
Swing over bed	210 mm
Distance between centers Model 410	410 mm
Model 510	510 mm
Hole through spindle	20 mm
Spindle taper	MT3
Tailstock taper	MT2
Spindle speed (variable speed)	150-2000 ±10% rpm
Compound travel	70 mm
Cross slide travel	100 mm
Motor output power	1000 W
Thread ofrangeMetric	0.25-3.0 mm (17 Threads pitches)
Imperial	8-24 TPI (10 Threads pitches)
Overall dimension (LxWxH)	910x630x400 mm
Packing Size (LxWxH)	1060x710x510 mm
Weight (Net/Gross)	95/125kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
