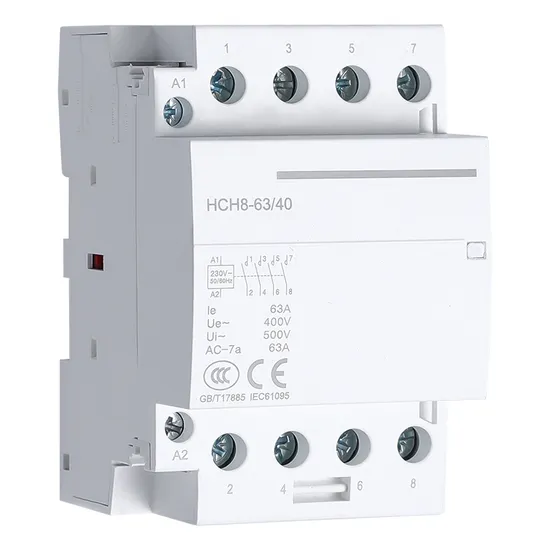

Nch8 Household Contactor 20A 25A 40A 63A AC Modular Contactor

Product Description

Product Description
Modular contactors are frequently applied for switching of lamp loads, fans or pumps in both utility as well as industrial areas.
All contactors with ac/dc coils ensure silent operation which is further enhanced for low consumption of power. Optimal contacts and low heat dissipation guarantee a long lifetime of the contactor which is available in a wide range of characteristics.
Technical characteristics Designed according to IEC 60947-4-1 and IEC 61095 standards. Suitable for applications in general control, heating & lighting applications. Available in 16A, 20, 25, 40 & 63 A ratings with up to 4-pole contacts. Coil voltages: 12 Vac/dc, 24 Vac/dc, 48 Vac/dc, 230 V ac, 220 Vdc.
Detailed Photos Product Parameters

Modular size		1 module	2 module	3 module	4 module
Model		BCH8-116 BCH8-120 BCH8-125	BCH8-216 BCH8-220 BCH8-225 BCH8-232 BCH8-240 BCH8-263 BCH8-2100	BCH8-316 BCH8-320 BCH8-325 BCH8-332 BCH8-340 BCH8-363 BCH8-3100	BCH8-416 BCH8-420 BCH8-425 BCH8-432 BCH8-440 BCH8-463 BCH8-4100
Rated current(A)	AC-7a	16,20,25	16,20,25,32,40,63,100
	AC-7b	6,7,9	6,7,9,12,18,25,-
Coil voltage(V)	AC 50/60Hz	24, 110, 230
	DC	24, 48
Contact		1NO 1NC	2NO 1NO+1NC 2NC	3NO 3NC	4NO 2NO+2NC 4NC 3NO+1NC
Protection degree		IP20
Operation temperature		-5 ~ 60ºC
Mechanical lifespan		100000times
Electrical lifespan		10000times
