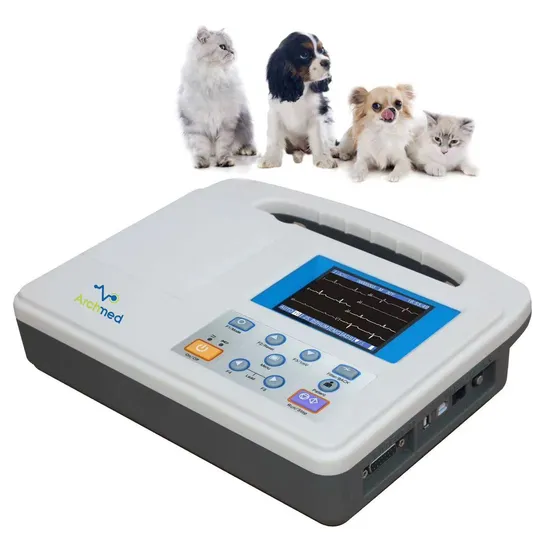

Veterinary Medicine Animal ECG Machine 3 Channel Veterinary Portable ECG Machine

Product Description

Veterinary Medicine Animal ECG Machine 3 Channel Veterinary Portable ECG Machine
Model:VECG-03B( 3 channel ,3.5inch display)Product Description

Standard Package
Main Unit Veterinary Patient Cable Grounding cable Paper axis Thermal paper Fuse Power cord PC software	1 unit 1 pc 1 pc 1 pc 1 roller 2 pcs 1 pc optional

Product Features
® Portable and delicate design, small size and light weight, easy to operate.
® 7 leads synchronous acquisition; High sampling rate.
® High accuracy digital filter, automatic baseline adjustment.
® Working modes: Manual, Automatic, R-R.
® 80mm, 3 channel recording, recording mode 1ch+, 3ch, 3ch+
® 320x240 graphic 3.5 inch color LCD to simultaneously display ECG information.
® 250 patient cases storage and replay ( SD card storage is optional ).
® Rich menu settings. Detailed patient information record.
® Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery. Charging time about 2.5 hours and continuous working time about 9 hours.
® USB / UART communication ports support USB storage, laser printing and PC ECG software ( Optional )Detailed Photos
Specifications

Model	VECG-03B
Lead	Standard7 leads
Lead acquisition	12bit/ 100Hz (synchronously 7 leads)
Work mode	Auto, Auto 2, Man, Analysis
filter	. AC Filter: 50Hz/ 60Hz . EMG Filter: 25Hz/ 45Hz . Anti-Drift Filter : 0.15Hz (Adaptive )
CMMR	>/= 100dB (with AC Filter)
Inputcircuit	Floating; Protection circuit against Defibrillator effect
Input im pedance	>/= 50M Q
Input circuit current	</= 0.05μA
Patient current leakage	<10μA
Calibrating voltage	1mV+/-2%
Voltage tolerance	</= +/-500mV
Time constant	</=3.2s
Frequency response	0.05~160Hz (-3db)
Noise level	<15μVp-P
Inter-channelinterference	</=0.5mm
Sensitivity	Auto, 2.5, 5, 10, 20, 40mm/mV
Recording mode	1ch+V, 3ch, 3ch+V
Paper speed	6.25, 12.5, 25, 50mm/s(+/-3%)
Paper	80mmx20m roll paper
Communication	Rs232 / USB port
Power supply	.AC-110-230V, 50/ 60Hz .DC : Built in rechargeable Ni-MH battery
Dimension and Weight	260mmx217mmx58mm, 1.4kgs

Packaging & Shipping

Small Carton 1 unit / carton

G.W.: 3.8kgs N.W.: 3.1kgs Size: 0.39mx0.34mx0.21m Volume: 0.03CBM Weight by Air: 5kgs Weight by Express: 6kgs

Big Carton 4 units / carton

G.W.: 16.8kgs N.W.: 12.4kgs Size: 0.69mx0.41mx0.46m Volume: 0.13CBM Weight by Air: 22kgs Weight by Express: 27kgs
