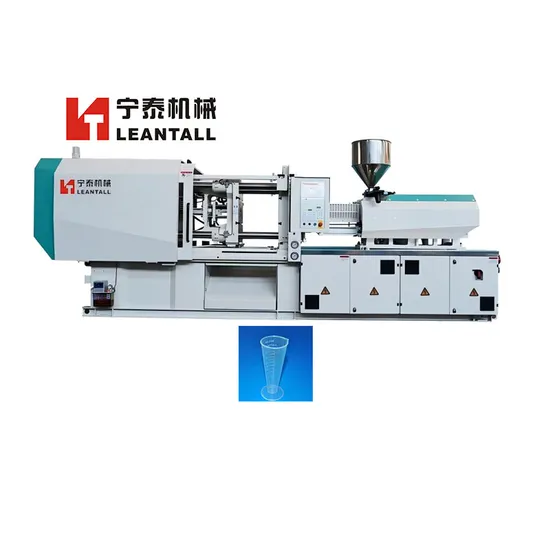

Nt1180 Infusion Set Parts with Servo Motor System of Injection Molding Machine for Plastic Medical Syringes and Plungers and Gaskets

Product Description

Product Parameters

Part	Name	Unit	NT1180
Injection Unit	SCREW DIAMETER	mm	105	115	125
	SCREW L/D RATIO	L/D	23	21	19.3
	INJECTION STROKE	mm	555	555	555
	NJECTION SPEED	Mm/sec	94	94	94
	SHOT VOLUME(THEORETICAL)	CM3	4805	5764	6810
	INJECTION WEIGHT(PS)	g	4372	5245	6197
	INJECTION PRESSURE	Mpa	207	173	146
	INJECTION RATE	cm³/sec	813	976	1153
	SCREW SPEED	rpm	120
Clamping Unit	CLAMP FORCE	Kn	11800
	OPEN STROKE	mm	1180
	SPACE BETWEEN TIE BARS	mm×mm	1180X1100
	MAX.MOULD HEIGHT	mm	1250
	MIN.MOULD HEIGHT	mm	500
	EJECTOR STROKE	mm	325
	EJECTOR FORCE	Kn	245
	EJECTOR NUMBER	N	21
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	65+65
	HEATING POWER	Kw	68.5
	MACHINE DIMENSION(L*W*H)	m×m×m	12.5*2.6*2.75
	MACHINE WEIGHT(ESTIMATE)	T	47

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
