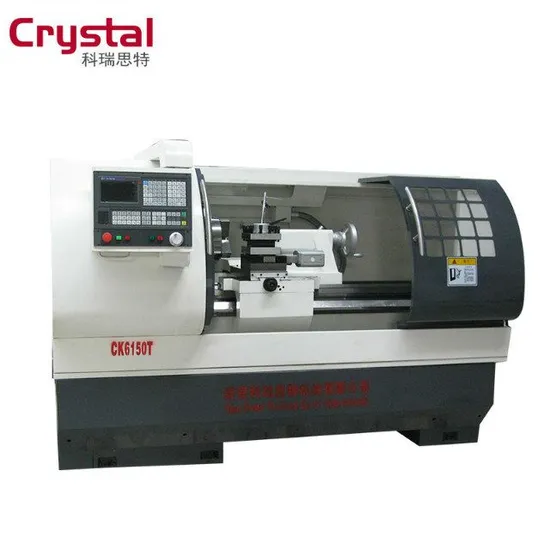

Whole Cast Iron Medium Duty CNC Lathe Machine Ck6150t

Product Description

Whole Cast Iron Medium Duty CNC Lathe Machine CK6150T Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Product Display
Detail Show
A. Main features:
1. It is made from the whole cast-iron, which is heavy enough with good rigidity and
stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and
high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is
φ250mm.
B. specifications of CK6150T

ITEMS	Specifications
Max. swim over bed	Φ500mm
Max. swim over carriage	Φ290mm
Max. length of work piece	1000mm
Width of guide way	360mm
Size of the three-jaw chuck	250mm
Range of spindle speed	3 gears, 30-150,100-500,320-1600rpm
Spindle bore	Φ72mm
Taper of spindle bore	Type of spindle D-8
Max. size of tool post	25×25mm
Stations of tool carrier	4/6/8/ station tool carrier
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Taper of tailstock quill	MT5
Max.range of tailstock quill	150mm
Motor power	7.5KW
Packing size(length ×width × height)	2660 mm×1560 mm×1730mm
Net weight	2500kg
