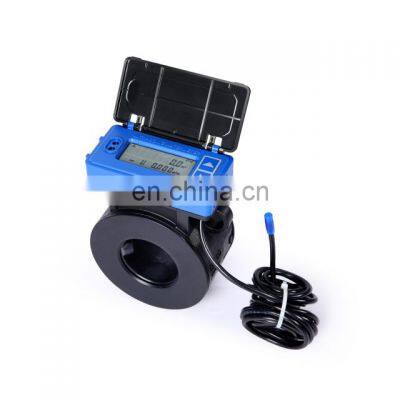

Related ProductProduct DescriptionSandwich insertion ultrasonic water meter Sandwich insertion water meter is a new series of patented product.Its a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision.Advantage of this water meter including low cost,high accuracy, low power consumption,stability and reliability. 1inch thickness of the meter help to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.TUF-2000K Sandwich-type ultrasonic water meter is a newly developed product with low cost, high measurement accuracy, small power consumption, stable and reliable characteristics, which is according to ISO4064-1:2014, GB/T778-2018 and the other standards, based on ultrasonic time-deference measurement technology.Specification 1.1Flow ParameterNominaldiameter(MM)Measurementrange ratioRFlow rate（m³/h）StartingFlowrateMinimumFlowrateQ1TransitionalFlowrateQ2PermanentFlowrateQ3OverloadFlow rateQ4DN50630.1590.6351.01640.00050.000DN65630.2501.0001.60063.00078.750DN80630.3971.5872.540100.000125.000DN100630.6352.5404.063160.000200.000DN125630.9923.9686.349250.000312.500DN150631.5876.34910.159400.000500.0001.2 Technology ParameterWater Meter Dimension2.Parts DescriptionsThe TUF-2000K ultrasonic water meter has wired type as the standard configuration, wireless type need to be customized.3.Installation Instructions3.1 Choosing install position When install the water meter,the upstream straight pipe line shgould be ≥5D, downstream straight pipe line should be ≥3D, 20D from the pump(D is the pipe diameter), and ensure water must be full of the pipe lines. 3.2 Installation MethodFeatures1.Protection Level IP68 Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water. 2.Built-in Volume Controller,Built -in Time AccumulatoAutomatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.Time-sharing flow accumulation within the set period of time,to achieve gradient rate. 3.Untrasound Measurement No rotation, No moving PartsEnsure Long-term high measuring accuracyApply to varieties of water quality,including the water contain gravel and weeds.Company ProfileDalian Taijia Technology Co.,Ltd.Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.Contact Us
>>
