High Quality ZK5150C CNC Drilling Machine Electric taladro

US$14,923.00
1-4 set
US$14,700.00
5+ set

Basic Info.

Model NO.
ZK5150C
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Specifications
ZK5150C-1/ZK5150C-2/ZK5150C-3/ZK5150C-5
Shipping terms
EXW,FOB,CFR,CIF
Max.Drilling dia.
50mm
Max.resistance
20000N
Max.torque
400Nm
Spindle taper
MT5
Main motor power
4kw
Spindle speed range(steps)
31.5-1400(12)
Rapid traverse speed
8000/7000 mm/min
Spindle box vertical travel
620mm
Table X axis travel
900mm
Table Y axis travel
420mm
Spindle vertical travel
240(M250) mm
Table size
1000*550mm
Positioning accuracy
0.05(0.04)mm
Transport Package
Plywood Case
Specification
2060*2160*2550
Trademark
LUZHONG MACHINE TOOL
Origin
China
Production Capacity
7000 Pieces/Year

Packaging & Delivery

Package Size
206.00cm * 216.00cm * 255.00cm
Package Gross Weight
2700.000kg

Product Description

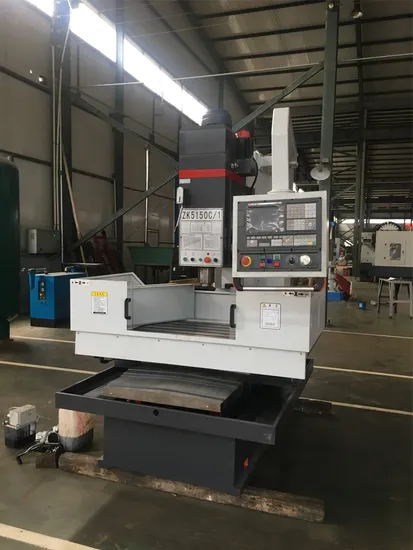

CNC Universal ZK5150C/ZK5150C-I/ZK5150C-II/ZK5150C-III/ZK5150C-V Drilling Machine
Product Description
Product Parameters
Product main technical parameters:
Specifications Unit ZK5140C ZK5150C ZK5140C/1 ZK5150C/1 ZK5140C/2 ZK5150C/2 ZK5140C/3 ZK5150C/3 ZK5140C/5 ZK5150C/5
Max. drilling diameter mm 40 50 40 50 40 50 40 50 40 50
Max. Feed resistance N 16000 20000 16000 20000 16000 20000 16000 20000 16000 20000
Max. Torque of spindle Nm 350 400 350 400 350 400 350 400 350 400
Spindle taper Morse 4 5 4 5 4 5 4 5 4 5
Main motor power kw 3 3 3 4 4
Range of spindle speed r/min 31.5-1400 31.5-1400 31.5-1400 31.5-1400 31.5-1400(stepless)
Feed range X.Y axis mm/
min		 0.6-3000 0.6-3000 0.6-3000 0.6-3000 0.6-3000
mm/
min		 0.3-2000 0.3-2000 0.3-2000 0.3-2000 0.3-2000
Rapid feed Z axis mm/
min		 6000(9000) 6000(9000) 6000(9000) 6000(9000) 6000(9000)
mm/
min		 3000(4500) 3000(4500) 3000(4500) 3000(4500) 3000(4500)
Spindle box stroke mm 470 470 470 470 470
The axis of travel Table X-axis mm 600 600 1000 850 1200
Table Y-axis mm 400 600 600 800 800
Spindle Z-axis mm 250 250 250 250 250
Distance between spindle nose to worktable mm 0-600 0-560 0-600 0-560 0-600 0-560 180-900 90-810 180-900 90-810
Size of worktable (L*W ) mm 850×450 850×650 1250×650 1100x850 1450x850
Positioning accuracy
(X and Y)		 mm 0.05(0.04) 0.05(0.04) 0.05(0.04) 0.05(0.04) 0.05(0.04)
Repeat positioning
accuracy (X and Y)		 mm 0.02(0.015) 0.02(0.015) 0.02(0.015) 0.02(0.015) 0.02(0.015)
Dimensions (L*W*H) mm 1550×1530×2512 1550×1740×2512 1800×1854×2512 1700x2482x2885 2000x2482x2885


Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
