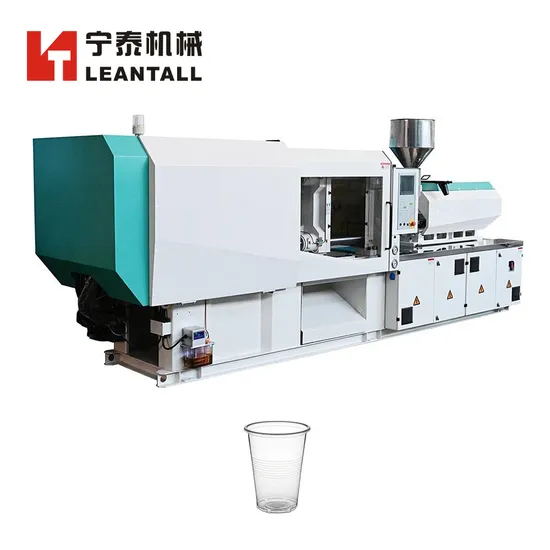

Injection Molding Machine Crusher Recycling Use Screw Diameter 95mm Standard Machinery Nt630

Product Description

Product Parameters

Part	Name	Unit	NT630
Injection Unit	SCREW DIAMETER	mm	90	95	100
	SCREW L/D RATIO	L/D	21	20	19
	INJECTION STROKE	mm	430	430	430
	NJECTION SPEED	Mm/sec	104	104	104
	SHOT VOLUME(THEORETICAL)	CM3	2735	3047	3377
	INJECTION WEIGHT(PS)	g	2488	2772	3073
	INJECTION PRESSURE	Mpa	180	162	146
	INJECTION RATE	cm³/sec	661	737	816
	SCREW SPEED	rpm	150
Clamping Unit	CLAMP FORCE	Kn	6300
	OPEN STROKE	mm	905
	SPACE BETWEEN TIE BARS	mm×mm	925X875
	MAX.MOULD HEIGHT	mm	900
	MIN.MOULD HEIGHT	mm	330
	EJECTOR STROKE	mm	295
	EJECTOR FORCE	Kn	152
	EJECTOR NUMBER	N	21
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	44+39
	HEATING POWER	Kw	42.8
	MACHINE DIMENSION(L*W*H)	m×m×m	9.7*2.1*2.4
	MACHINE WEIGHT(ESTIMATE)	T	25

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
