Medium Scale CNC Milling Drilling Cutting and Engraving Machine Horizontal Machining Centerhlc630 Hot Sale

US$86,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HLC630
Type
Horizontal Machining Center
Object
Metal Milling
Structure
Desktop
Milling Cutter Type
Face Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle
Taiwan
Leadscrew
Taiwan
Rotary Table
Taiwan
Controller
Fanuc, Siemens
Transport Package
Wooden Pallet
Specification
5000*3200*3200
Trademark
HDCNC
Origin
China
HS Code
84595900
Production Capacity
5000

Product Description

1.machine structure 1.column type frame mechanism
2.Taiwan brandhigh rigid spindle
3.Taiwan brand rotary table
4.machine guideway with Taiwan brand heavy linear guideway
5.Taiwan brand 24 sets /32sets/40sets ATC
2.Machine model
MODEL Unit HLC500 HLC500S HLC630 HLC630S HLC800 HLC1000 HLC1000S HLC1250 HLC1500
Table size mm 500*500 500*500 630*630 630*700 800*800 1000*1000 1000*1000 1250*1250 1500*1500
Max.load kg 500 600 2000 950 2000 5000 1500 5000 8000
table diving ° 1*360/0.001continuous
No.-W*distane mm 5-18*100 5-18*125 5-22*160 5-22*1600 7-22*130 5-22*125 7-22*150 5-28-275
rapid speed(x/y/z) mm/min 20/15/20 30/30/30 20/15/20 16/12/16 15/15/15 12/9/9 9/9/9
spindle center line to table surface mm 50-650 120-820 0-800 0-750 0-900 0-1400 120-1120 100-1500 50-1550
spindle nose to table center mm 150-750 130-980 200-1100 130-1030 220-1120 250-1650 220-1220 250-1650 450-2450
spindle speed rpm 6000
spindle power kw 11/15 11/15 15/18.5 15/118.5 15/18.5 18.5/22 18.5/22 18.5/22 18.5/22
Tool holder type BT50
Pull nail BT50-45°
ATC capacity 24/32/40 30/32/40
Tool change time(tool to tool) s 3.5 7.5s
Max tool weight kg 25
Max. diameter tool mm Φ110/Φ220 Adjacent empty Φ125/Φ240 Adjacent empty
Air pressure Mpa 0.6-0.8
machine weight kg 10800 10000 13000 13500 14000 26000 20000 28000 34000
machine overall size(L*W*H) cm 380*300*302 380*280*290 430*315*380 740*590*382 640*550*382 740*590*382 820*690*500

3.Standard accessories
24 Tool ATC spindle air curtain dust control system workpiece cooling system
equal division CNC rotary table Automation lubrication system Spiral chip removal device
chain-plate type chip lifter full cover tool,anchor bolt and pad iron

4.Optional accessories
32 arm chain type ATC 40 arm chain type ATC ZF gearbox drive
central outlet of spindle spindle oil cooling device arbitray indexing CNC rotary table
scraper lift chip remover 3 axis linear scale tool detection device
workpiece detection device door opening protection portable chip air gun,water gun

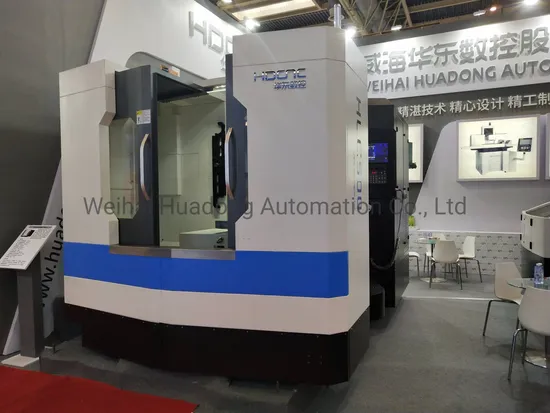

5.Company honors International exhibition
