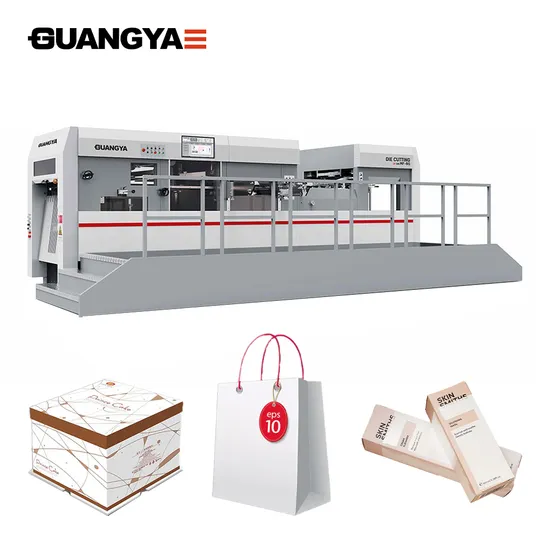

High Advanced Automatic Die Cutting Machine with Stripping

Product Description

TECHNICAL PARAMETER

Max. sheet size	1060×760mm
Min. sheet size	400×350mm
Max. die cutting size	1060×746mm
Max. mechanical speed	7500s/h
Paper range	80-2000g/m² ≤4mm(corrugated)
Max. working pressure	350T
Gripper margin	9-17mm
Height of cutting rules	23.8mm
Feeding pile height	1400 (1700)mm
Feeding pile height (non-stop)	1100(1400)mm
Delivery pile height	1100(1400)mm
Main motor power	15kw
Total Machine power	20kw
Machine weight	22T
Air requirement	0.6Mpa,>0.37m³/min
Overall size (with presetting table, upgraded model)	7480×5652×2645mm
Overall size (without presetting table, upgraded model)	7480×4152×2645mm
Overall size (with presetting table, standard model)	7480×5652×2345mm
Overall size (without presetting table, standard model)	7480×4152×2345mm

MAIN FEATURES
Non-stop Feeder
• Imported Non-stop High-Speed Feeder
• Feeder anti-collision protection
• Feeder electric adjustment
• "SMART" - One button start function, feeder is automatically in position (optional)
• Synchronous belt drive to ensure the accuracy of paper feeding
• Left and right movement function of pile tray
• Adjustable paper feeding side blowers
• Pre-stacking paper function, non-stop paper feeding function
Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Adaptive pressure wheel
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector (optional)
• "SMART" - One button start function, feeding wheel is automatically in position (optional)
Host Station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
• Presetting Table (optional)
Frame and Bottom Plate
• Two-way one button locking device for chase and bottom plate
• Positioning locking function of frame and host to ensure operation accuracy
• Anti-drop protection function for chase and supporting plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• Cutting plate fine adjustment
Host Structure
• Host with exclusive and innovative design and is made of specially treated materials
• Extremely high strength, toughness and service span
• Can withstand greater working pressure and working speed
Stripping Station
• Stripping part in three frames mechanism
• Three frames with center positioning function
• Automatic in place function of the upper stripping frame by one key
• Upper stripping frame moving up and down pneumatically
• Automatic locking function of the upper stripping frame by one key
• Quick locking function of the middle stripping frame
• Quick positioning function of the bottom stripping frame
Delivery
• Automatic non-stop auxiliary delivery function
• Non-stop sampling function
• Servo-controled braking brush with motorized adjustment function (length and angle)
• Rear jogger fine adjustment device
• Tape inseter (optional)
• Safety light curtain
• "SMART" - One button start function, delivery is automatically in position
• Paper delivery fan system. It can be adjusted individually; infinitely variable speed.
• Automatic intermittent lubrication system
Control System
Operating System
• 24-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
• Imported motion control system, Ethercat real-time industrial bus structure
Electrical System
• Modular design of electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet (optional)

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES
CERTIFICATE
DELIVERY
The Unique Human Care and Profession Passionate Sales Service System:
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all year non-stop service, personal training and so on.
Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training,exchange management platform and so on.
Realizing the idea of focusing on customer success, creating value to customer.
