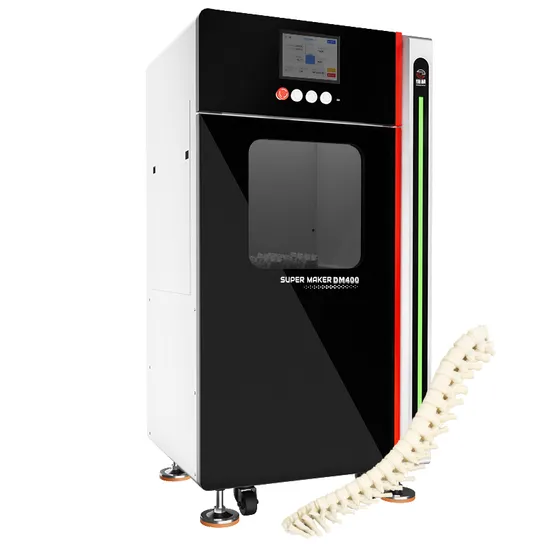

Dm-400 Professional Top-Down DLP 3D Printer with Superior Precision for Detailed Industrial Models

US$22,980.00
1-2 set
US$18,000.00
3+ set

Basic Info.

Model NO.
DM 400
Size
Medium
Speed
6-8 Second/Layer
Forming Technology
DLP
Connections
USB
Software Format
.stl
Printing Material
DLP Resin,with 405nm
Operating Screen
7.0 Resistive Screen
Power Requirment
220V/50Hz
Light Source
4K405 Light Source DLP
Net Weight
320kg
Transport Package
Crate Case
Trademark
ZONGHENG
Origin
China
HS Code
848520000
Production Capacity
20set/Month

Product Description

Product Model DLP-DM400
Operating system Zongheng Self-developed System
Operating screen 7.0" resistive screen
Print size 384*216*330mm
XY Resolution 100um resolution
Technology Top-Down DLP
Light source 4k, 405 light source DLP
Connection method USB stick or network cable
Z-axis accuracy 0.002
Layer thickness 0.03-0.15
Print speed 6-8 seconds per layer
Power Requirements 220v/50HZ
Slicing software Self-developed
Machine size (L*W*H) 810*690*1560mm
Net weight 320KG
Slicing Software VoxelDance Tango
Printing Platform Magnetic detachable platform
Import File Format igs,stl,step
Coating system Adjustable negative pressure scraper
Warranty One Year
Tank Capacity 58.3L(70KG)
Resin 405nm:Model Resin, Dental Resin, Flexible resin, Jewelry Resin, High Temperature Resin, High ToughnessResin,Water Washable Resin,Transparent Resin

1. SuperMaker DM400 is DLP 3d printer developed for model resin and ceramic printing, open style, easier to adjust. 2. Suitable Projector modes: 405nm or 385nm. 3. We have created unique testing function for material testing. Do not need complex operations. Supports single-layer exposure of specified models. Parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. With just a few milliliters resin, simple models can be printed to test performance. 4. It supports stl, igs, step file. 5. Scrapers: two kinds of working model, one is for without coating and pressure, use for the high sticky resin, such as ceramic resin, another one is with coating and pressure, use for normal model resin etc. 6. Equiped with various tanks with different sizes. Users can customize the tank.
