Customized High Quality Plastic PP Hair Comb Brush Servo Making Injection Moulding Machine

Product Description

Customized High Quality Plastic PP Hair Comb Brush Servo Making Injection Moulding Machine
Product Description

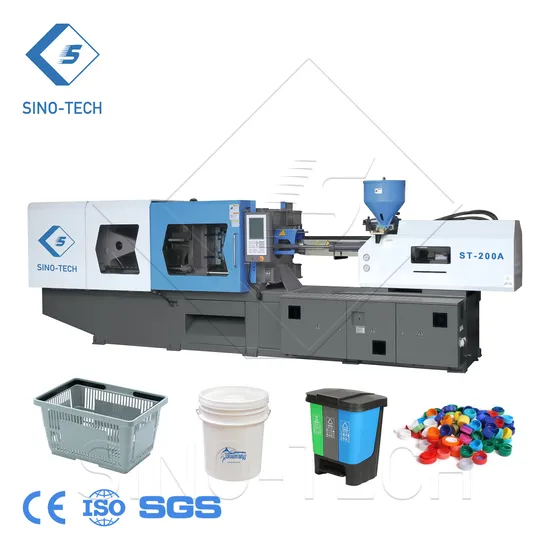

SINO-TECH ST-series with clamping force ranges from 50 to 4000 ton injection molding machine. Besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine, high speed injection machine.Main Features1.Arch template, effectively protects the mold, especially suitable for big template with small mold.2.The electric ruler is installed on the crosshead, the position is more precise.3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.5.Connected movable plate, improves its rigidity and reduces deformation6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.7.Arch template fully complies with mechanical property, largely improves template strength.8.More reasonable toggle design, speeds and stabilizes mold opening and closing.9.Adjustable movable plate mounting plate, makes the installation easier.
10.Mixed design of T-shape groove and die hole, increases universality of the mold.
Product Parameters

Item		130SElll
		1300-433
Screw diameter	mm	35	40	45
Theoretical shot volume	cc	192	251	318
Shot weight (PS)	g	175	229	289
Shot weight (PS)	oz	6.2	8.1	10.2
Length/Diameter ratio	L/D	23.4	20.5	18.2
Injection pressure	MPa	225	172	136
Injection rate	cm³/sec	93	122	154
Injection stroke	mm	200
Max. Screw speed	rpm	205
Plasticizing capacity (PS)	g/s	11.9	16.2	20.0
Injection unit force	Ton	5.7
Carriage stroke	mm	300
Clamping force	Ton	130
Max. daylight	mm	880
Clamping stroke	mm	430
Distance btwn. Tie bars	mm	410*410
Min mould dimension	mm	280*280
Mould thickness range	mm	145-450
Ejector force	Ton	4.1
Ejector stroke	mm	120
No. of ejector pins	unit	5
Max. motor power	kW	13.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	72
No. of heater zones	unit	3+1+1
Heater input power	kW	9.3
Ultimate capacity	kw	23.7
Current	A	32.4
Net weight	Ton	4.16
Oil filling capacity	L	200

Seller Recommendation

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
