China Gasoline Engine Orchard ATV Flail Hay Grass Slope Petrol Remote Control Robot Commercial Auto Crawler Lawn Mower Prices

Product Description

Product Description:
China battery gasoline engine atv flail hay grass cordless petrol remote control robot mini lawn mower automatic self propelled

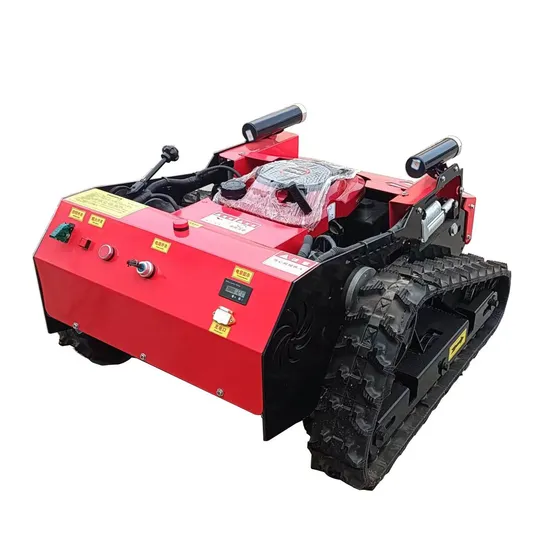

This remote control lawn mower with small engine is designed for orchards, gardens,farmland, lawns, wastelands, slopes and other places with narrow and sloped working spaces. The main feature is remote control walking, equipped with a gasoline engine, and a liftable cutter head. It is safer and more efficient to use , Environmental protection, reduce noise.
Operating instructions :
-, Preparation before starting the remote control mower
1)Be sure to confirm the tightness of screws of all parts before starting up.
2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote controller to turn on the remote controller.
3)When the remote control turned on, a "drip" will appear, indicating that the machine matches the remote control normally.
4)engine start;
-a,Release the brake on the right side of the engine;
-b,Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);
-c,Pull hard on the pull rope of the hand pull plate to start the engine;
-d,Adjust the throttle to the proper speed in time after starting the engine;
-e,Operate the remote control to cut it.
-,Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed gear) The left joystick controls the machine to walk forward and backward, and the right joystick controls left and right turns 5 Channel (two-stage switch):The cutter head rises and falls to adjust the cutting height of the cutter head.
Rudder fine adjustment (left-right adjustment): When adjusting the walking speed of the machine, the electronic adjustment in the machine will make a "drip" sound. Only then can the "Rudder fine adjustment" button be used until the electronic adjustment in the machine does not make a sound.
Throttle fine adjustment (up and down adjustment): the same principle as the "rudder fine adjustment" button.
Pictures:
Specification:

item	value
Grade	Industrial
Warranty	1 years
Engine Displacement	196CC
Voltage	24V, 28V, 48V, 36V
Power	5.5HP, 7.5hp
Customized support	OEM
Brand Name	CP
Model Number	RM55
Feature	4-Stroke, Self Propelled, Single Cylinder
Forward Speed	5km/h
Power Source	Petrol/Gasoline
Model	RM55
Cutting width(mm)	550
Cutting height(mm)	20-180mm
Overall weight(kg)	130KG
Dimension(L x W x H)	1060 x1000 x 650 mm
Wallking speed	0-5km/h
Working slope	0-45°
Minimum Distance from the ground	10mm
Engine Brand	LONCIN
Rated Power	7.5HP
Engine Type	Vertical axis four stroke
Fuel	Gasoline

Packing & Delivery:
Packaging Details:
Packing method:Plywood case
Package size:1060 x1000 x 650 mm
20GP:: 30 pcs
40HQ: 88 pcs
or as customer's requirement

---
