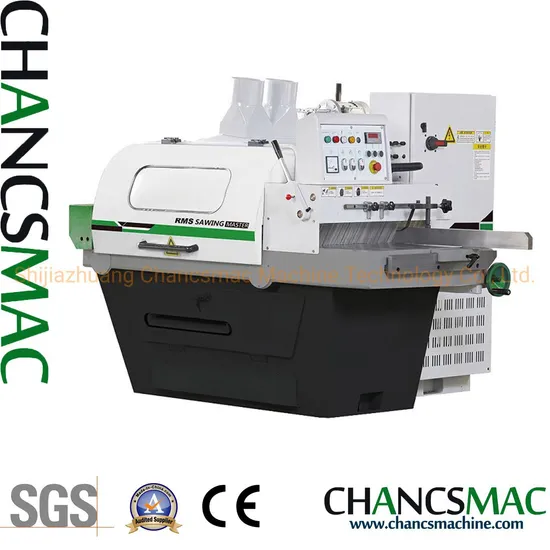

Multi Rip Saw RMS400

Product Description

Multi Rip Saw
1.Introduction:
1. Stable Performance: Machine body is made of casting, processed by numerous aging and 5- axis CNC, high precision and performance
2. Long life span: Conveyor belt and guide are applied unique wear-resistant material and assure long term working.
3. Reliable operation: Spindles processed by tempering treatment, precision machining, and dynamic balancing with high quality alloy material. Operation is reliable and stable.
4. Configure automatic oil lubrication system. Once oil leakage, or lack of oil, system will shutdown automatically to protect the guide rail, chain plate and main sliding parts.
5. Anti-rebound devices worked at top and bottom, as well as front safety door, prevent the rebound in thin sections and tumor wounding
6. Pressing device with electric lifting equipment, convenient to adjust and improve productivity.
7. High torque gear box equipped on feeding system, can meet a variety of thickness and wood material processing requirement.
8. Multi-group of pressure wheel to make sure 250mm as minimum length with continuous feeding.
9. International electric components working in the machine, stable, reliable and easy replacement.
2.Parameter:

Model	RMS300	RMS400
Mini Working Lenght(Install Short Pressure Board)	280mm	350mm
Mini Working Length(Install Long Pressure Board)	400mm	500mm
Max Cutting Thickness(Install Short Pressure Board)	70mm	110mm
Max Cutting Thickness(Install Long Pressure Board)	85mm	135mm
Max Cutting Width	3-300mm	4-400mm
Max Diameter of saw	305mm	405mm
Mini Diameter of saw	203mm	305mm
Inner Diameter of saw	70mm	80mm
Spindle Diameter	50mm	60mm
Spindle Speed	3800r/min	3200r/min
Spindle Motor	22Kw/30Kw/37Kw	37Kw/45Kw/55Kw
Lifting Motor	0.37Kw	0.37Kw
Feeding Motor	0.85Kw/1.5Kw	3Kw
Feeding Speed (Stepless Variable)	7.5-30m/min	5-35m/min
Dust Outlet Diameter	2xΦ150mm	2xΦ150mm
Working Table Height	740mm	830mm
Working Table Dimension	1730x760mm	1990x850mm
Overall Size (LxWxH) mm	1890x1625x1458	2330x2070x1920
Total Weight	2200Kg	3500kg

3. CHANCS after-sale service:
1. Engineers available to serve and train customers overseas.
2. Machine gurantee is one year.
3. English manual and PPT installation and operation file with pictures step by step.
4. Whole life technical support for CHANCS machinery.
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.

---
