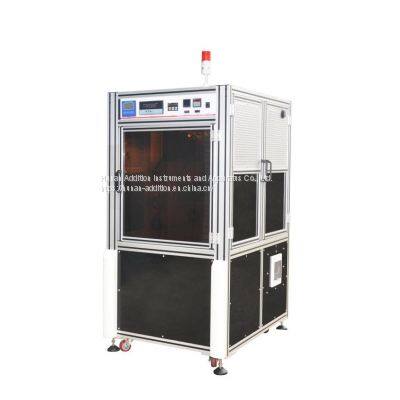

Brake Fluid Stroke Simulation Test Machine
Product model: JF4925
Product Introduction
This instrument is suitable for evaluating the lubricating performance and material adaptability of brake fluid. Under the specified test requirements, a total of 85,000 stroke tests are carried out to observe the changes of related materials.
Technical Parameter
1. Applicable standard: ISO4925
2. Pressure range: 7Mpa±0.3 Mpa
3. Pressure control: precision regulator valve
4. Pressure display: precision pressure gauge
5. Stroke rate: 1000 times/h
6. Number of trips: 85000 times
7. Temperature range: 20~150℃±2℃
8. Temperature control method: digital display PID temperature controller
9. Refrigeration method: compressor refrigeration
10. Timing method: digital display timer
11. Alarm mode: wind alarm
12. Working power supply: AC220V 50HZ
Performance characteristics
1. A cast iron brake main pump, cylinder diameter: 28.58mm~28.65mm, aluminum alloy piston, diameter: 28.52mm~28.55mm;
2. Three brake cylinders, cylinder diameter: 28.60mm~28.66mm, aluminum alloy piston, diameter: 28.52mm~28.55mm;
3. A set of special pump body adjustment mounting plate;
4. The main line pipe adopts uncoated steel pipe;
5. A set of standard drive mechanism can generate 8 Mpa working pressure;
6. Digital display stroke rate, with adjustment device;
7. No radiation heating system;
8. The rubber cup meets the standard requirements;
9. Microcomputer temperature controller, digital display, temperature control range: 20~150℃±2℃, PT100 temperature sensor, high precision;
10. The pressure gauge shows the working pressure, and the precision regulator valve is adjusted, the pressure: 7Mpa±0.3 Mpa;
11. Digital timer, wind alarm;
12. The fully enclosed compressor is used for refrigeration, and the gas circulation reduces the temperature of the test chamber;
13. One-piece structure, easy to operate;
>>
