Hot Selling ISO 9001 Certified Heavy Metal Lathe Machine Tc-52 Metal Milling Machine

Product Description

Product Description
HIGH RIGIDITY,HIGH PRECISION FRAME DESIGN TC-52 MACHINE CENTER
- Our Machine Center is One-piece main body,low gravity 30 degree slant bed provide spindle and turret stable
accuracy.
- Through FEM analysis optimize machine structure design, maintain stable rigidity duringnheavy duty cutting,
also guaranty high accuracyand longer tool life.
- All machine main body adopt FC30 Mihanna iron casting with stiffener to enhance machine structure, heat
balance design satisfy long time machining requirement. FC30 iron casting also effective reduce vibration and prevent
machine deformation.
- X axis and Z axis driven by AC servo motors, provide powerful feed rate and acceleration and deceleration movement precision control. Absolute coordinate encoder instead limited switch, avoid limited switch damage also save time from needless zero point return when machine turn on.

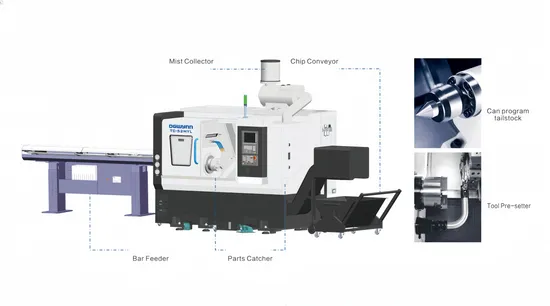

- Option Attachment Of The Machine
- Machine Configuration Dimension Of The Machine
Detailed Photos
Product Parameters

Item	Descirbe	TC-52L	TC-52ML	TC-52MYL	Unit
Ability	Max. swing over bed	560			mm
	Swing over saddle	400			mm
	Max. turning length	500	450	480	mm
	Max. turning Dia.	325	320	380	mm
	Max. bar size	52			mm
X/Y/Z Stroke	X axis stroke	230 (205+25)	210 (185+25)	220 (205+15)	mm
	Y axis stroke			95 (±47.5)	mm
	Z axis stroke	570	560	590	mm
	rapid feed rate	24/24	24/24	24/24/20	m/min
Turret	Turret driven method	Servo tool tower	Power tool tower		Set
	Tool Qty.	12
	Shank specifications	25			mm
	2Power head specification		ER32	ER25	mm
	Boring tool holder specifications	Ø40		Ø32	mm
	Milling spindle speed		5000		rpm
	Motor powerof power head		3.55		kw
Spindle	Spindle nose	A2-6
	Spindle through hole Dia.	Ø66			mm
Tailstock	Tailstock travel	450			mm
	Thimble taper	MT-4
Control System	NC controller	SIEMENS - 828D
	spindle motor power	22			kw
	spindle speed	4000			rpm
	X/Z senvo motors	3.3			kw
	Y axis servo motors			2.3	kw
Dimensions	L x W x H	2700*1820*1900			mm
	Weight	≈ 4.6		≈ 4.8	Ton

Type & Scope of Processing

Company Profile

Transtar Machinery Co., Ltd. is located in Dongguan, known as the "Factory of the World". We are a company specializing in the production and sales of machine tools and tools, with products ranging from traditional machine tools and tools to CNC machine tools everything, tailored to the needs of customers. The company has a specialized R & D team, from castings to the body, from the circuit to the system layers of control, so that the company's products are constantly updated, constantly improved, and to date we have nearly thirty years of experience in the industry, can provide customers with the industry's more cutting-edge quality products. Our main types of business include, but are not limited to, surface grinders, CNC grinders, lathes, machining centers, 5-axis machines, mill-turn machines, gantry machines, and related ancillary products. We have a wide range of machine tools with competitive prices and great influence in the industry. We develop global customers with high quality products and the best service, and since the establishment of our company, we have been adhering to the business philosophy of "Professional Quality, Reputation First, and Customers First", and we are constantly pursuing excellence to create greater value for our customers. We are committed to becoming the industry leader and contributing to the development of machinery manufacturing, for which we have been working hard to serve every one of our customers and are committed to realizing the development goal of becoming an important member of the global market, and working hand in hand with our customers to create a better future!

FAQ
Q1:Can we visit your factory before order?A: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick you up at the station or airport if needed .
Q2:What's your main products of your company?A: We specialized in all kinds of machine tools,such as CNC Lathe Machine, Turning and Milling Compound Lathe Spindle Cnc Lathe Machine,Lathe Feeder Machine and so on.Q3:Can you provide customized machines?A: Yes, we can design and manufacture according to your specific requirements.Q4:Do you have professional engineers?A: Yes,we have professional engineers and designers.Q5: Does your company provide professional training?A: Yes, we provide training and teaching or use video teaching.Q6:How can I choose the most suitable machines?A: You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.Q7:What is your terms of delivery?A: FOBQ8:What is your terms of payment.A:TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.Q9:How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q10: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q11:Can you provide product samples?A: Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.Q12:What industry are your machines used in?A:Automobile parts industry,Electronic Equipment Industry, Home appliance industry, and so on.

---
