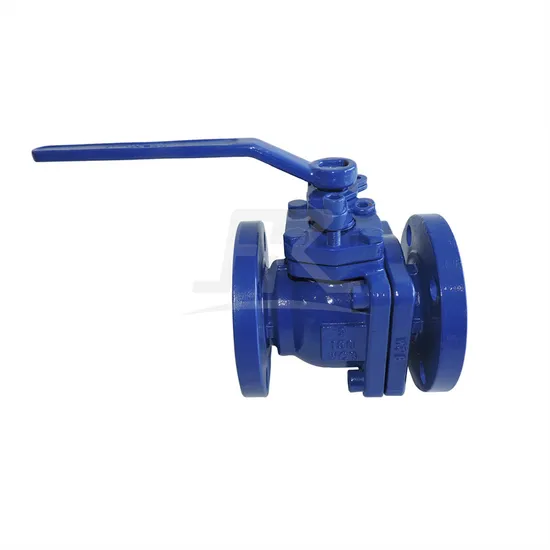

Fluorine PTFE PFA FEP Lined Manual Pneumatic Flange End Floating Ball Valve

Product Description

Product Description
FREE-VALVE fluorine lined ball valve is lined with corrosion resistance,aging resistance of PTFE/F46, has the corrosion resistance and reliable sealing to acid, alkali and other corrosive medium.Features of fluorine lining ball valve is zero leakage with superior sealing performance.Fluorine lining ball valve adopts fluorine plastic as liner and equipped with new type structure of the ball integrated with stem,it provides itself all the advantages of general ball valve. Features
1. Two pieces full port standard lined ball valves offer high stability, rigidity and eliminating potential leak path.
2. Full bore design almost no fluid resistance, and good shut-off performance.
3. The valves can work as on-off or control valve.
4. The valves can sustain any corrosive medium.
Technical Specification

1	Size Range	NPS1/2~NPS12,DN15~DN300
2	Nominal pressure	Class 150 /PN10/PN16
3	Applicable Temperature	-10ºC~+180ºC
4	Connection Type	Flange
5	Lining Material	PTFE , PFA , FEP
6	Ball	Stainless steel+PTFE , PFA , FEP
7	Seat	PTFE
8	Pressure test	GB/T13927, API598
9	Face to Face	GB/T12221, ASME B16.10
10	Operating Type	Manual lever , Worn gear ,Pneumatic

Service Temperature and suitable media of body lining material

Lining material	Service temperature,°C	Application medium
NR	-10°C~+85°C	exclusive of strong oxidants:fluorosilicic acid, phenolic acid, 30 percent sulfuric acid, 80 percent phosphoric acid, alkali, salt, gold plating solution, sodium hydroxide, potassium hydroxide, neutral salt aqueous solution, 10 percent sodium hypochlorite, ammonia, most alcohols, organic acids and aldehydes,ect
EPDM	≤120°C	It has the similar acid and alkaline properties of natural glue, and it is very good for low pressure steam, hot water and cold water.
PTFE(F4)	≤180°C	Strong acid, strong base, strong oxidant, organic solvent, etc
FEP(F46)	≤120°C	Any organic solvents or reagents, xi or concentrated inorganic acids, bases, ketones, aromatics, chlorinated hydrocarbons, etc
PFA	≤180°C	Strong acid,strong alkali,Strong oxidant, organic solvent, etc

Main outline and connection dimensions

DN	PN	L	D	D1	D2	n-∅d
15	PN10	130	95	65	45	4-∅14
20	PN10	140	105	75	55	4-∅14
25	PN10	150	115	85	65	4-∅14
32	PN10	165	140	100	78	4-∅18
40	PN10	180	150	110	85	4-∅18
50	PN10	200	165	125	100	4-∅18
65	PN10	220	185	145	120	4-∅18
80	PN10	250	200	160	140	8-∅18
100	PN10	280	220	180	155	8-∅18
125	PN10	320	250	210	185	8-∅18
150	PN10	360	285	240	210	8-∅22
200	PN10	400	340	295	265	8-∅22
250	PN10	450	395	350	320	12-∅22
300	PN10	502	445	400	370	12-∅22
350	PN10	686	505	460	420	16-∅22
400	PN10	762	565	515	475	16-∅26

Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to GB/T9113 or ASME B16.5.
Application
FREE-VALVE brand fluorine lined ball valve are widely used in chemical, petroleum, metallurgy, electric power industry.

---
