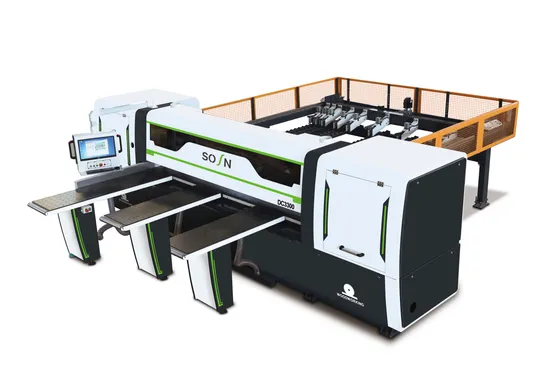

Big Wood Panel Cutting CNC Computer Beam Saw

Product Description

big wood panel cutting CNC Computer beam saw
2).Main Parameter

Max.cutting length	2700mm	3300mm
Max.cutting width	2700mm	3300mm
Max.cutting height	120mm	120mm
Max.saw blade height	125mm	125mm
Min. cutting size	50*50mm	50*50mm
Main saw blade motor power	15kw	15kw
Main saw blade diameter	450mm	450mm
Main spindle diameter	75mm	75mm
Main saw blade speed	4000r/min	4000 r/min
scoring motor power	2.2kw	2.2kw
scoring saw blade diameter	¢200mm	¢200mm
main spindle dia.	¢50	¢50
scoring saw blade speed	6000r/min	6000r/min
Pusher system drive motor	1.8kw	1.8kw
Pusher system push speed	5-100m/min	5-100m/min
Pusher system pull speed	5-100m/min	5-100m/min
High pressure blower motor	5HP/3.0kw	5HP/3.0kw
Side aligner motor	90w	90w
working air pressure	6-7kg/cm2	6-7kg/cm2
saw carriage drive motor	3.4kw	3.4kw
Forward speed	0-120m/min	0-120m/min
Return speed	120m/min	120m/min
Table height form floor	970mm	970mm
Grippers	8 groups	8 groups
Voltage	380V,50HZ, 3 phase	380V,50HZ, 3 phase
Machine size	6200*6300*2000mm	6450*6900*2000mm
weight	5.2T	5.5

Details Show
·10 sets of clamps.
Pneumatic holding gripers, can give the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, minimum holding panel size is 35*35mm
·Working table equipped with Air-floating balls
Effectively protects panel from scratching and much easier to feed in panel.
·Pusher driving system
Pusher adopts high precision worm reduce ans feeding gears and racks to make an accurate sawing.
·Saw carriage driving system with liner guideway
Adopts with servo control and transmission with gears & racks, maximum moving speed is up to 120m/min.
The whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy.
The beam is made of 30mm thick steel plate, weighing 1.1T
Taiwan30 linear guide, 5.6 meters, loner service life.
Main frame adopting annealing technology, ensure frame non- deformation,
High efficiency and stable quality.
Working Effect
--Delivery: We can guarantee delivery on time. We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount. --Package: After testing the cnc computer beam saw machine well, our workers will do cleaning work before package. stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?
Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.
Q: Can you promise to deliver the machine in time?
A: Yes, we can.
Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
--Guarantee: The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time. --Technical support: Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online. We provide English version manual and Operational video. Engineer available to service machinery overseas. --After sales services: Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.

---
