Intermediate Crusher Stone Crusher Mining Stone Processing Machinery

Product Description

Product Description
Product introduction:

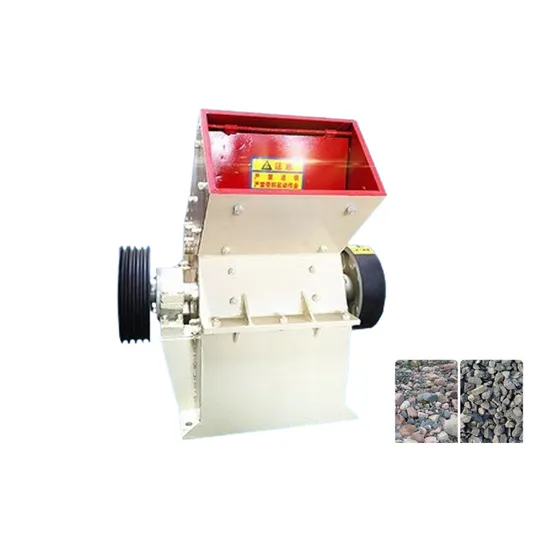

Hammer crusher is suitable for fine crushing of medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway and other industries. The high-speed rotating hammer collides with the material to crush the material. It can be crushed in dry and wet forms.
Features:
1. Many applicable materials, large operating space;
2. Reasonable hammer head design and high work efficiency;
3. Triple crushing, energy saving and consumption reduction;
4. Stable operation and large crushing ratio.
Applicable materials:
construction rubbish, limestone, Quartz stone, granite, Pebbles, Basalt, Coal, Cement bloc etc.
Detailed Photos
Product Parameters
Different models and parameters of hammer crushers

Model	Feed size(mm)	Discharge size(mm)	Capacity (m/3h)	Motor power(kw)	Weight (t)	Dimension(mm)
GS400*300	≤200	<25	5-10	11	0.8	900*670*860
GS600*400	≤250	<30	10-22	22	2.26	1200*1050*1200
GS800*600	≤250	<35	18-40	55	4.8	1310*1180*1310
GS1000*800	≤350	<35	25-50	75	5.9	1600*1390*1575
GS1000*1000	≤350	<35	30-55	90	8	1800*1590*1775
GS1250*1250	≤350	<35	35-65	132	14	2060*1600*1890
GS1400*1400	≤350	<35	50-100	280	32	2365*1870*2220
GS1600*1600	≤350	<35	100-150	480	37.5	3050*2850*2800

Packaging & Shipping
Delivery: about 25 days upon receipt the deposit.Packaging: Shipping by stretch film inside and plywood case outside into containerQuality Guarantee: 12 months from delivery date except spare parts.Installation and Manual:1)No need any installation and just connect your power.2)Manual(in Chinese/English/Spanish/French) will be provided after order confirmation
