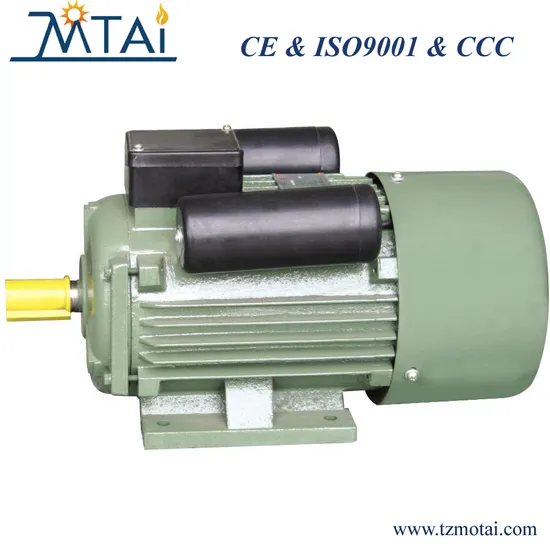

YC Series Single Phase Capacitor Start AC Electric Motor with Aluminum Casing

Product Description

other product recommendation
Product Description YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.
Protection Class: IP44/IP54 Cooling Type: IC0141
Insulation Class:B or F Operation Type: S1
Rated Voltage: 115/230,220V Rated Frequency: 60 Hz(50Hz)
Shell material: casting iron and aluminium alloy (only used below 100)

Technical Data (220V/50Hz)

Model	Power		Current (A)	Power Factor (cos¢)	Eff (%)	Speed (r/min)	locked torque Rated torque Tst/Tn	locked current Rated current Ist/In	Tmax/ Tn
	Hp	kW
YC7112	1/4	0.18	1.89	0.72	60	2800	3.0	7	1.8
YC7122	1/3	0.25	2.4	0.74	64	2800	3.0	7	1.8
YC8012	1/2	0.37	3.4	0.77	65	2800	2.8	6.5	1.8
YC8022	3/4	0.55	4.7	0.79	68	2800	2.8	6.5	1.8
YC90S-2	1	0.75	6.1	0.8	70	2800	3.0	6.5	1.8
YC90L-2	1.5	1.1	8.7	0.8	72	2800	2.5	7	1.8
YC90L-2	2	1.5	11.4	0.81	74	2800	2.5	7	1.8
YC100L-2	3	2.2	16.5	0.81	75	2800	2.2	7	1.8
YC100L1-2	4	3	21.88	0.82	76	2800	2.2	6.8	1.8
YC100L-2	5	3.7	26.64	0.82	77	2800	2.2	6.4	1.8
YC112M-2	4	3	21.4	0.82	76	2800	2.2	7	1.8
YC7114	1/6	0.12	1.88	0.58	50	1400	3.0	9	1.8
YC7124	1/4	0.18	2.49	0.62	53	1400	2.8	7	1.8
YC8014	1/3	0.25	3.11	0.63	58	1400	2.8	6	1.8
YC8024	1/2	0.37	4.24	0.64	62	1400	2.5	6	1.8
YC90S-4	3/4	0.55	5.5	0.69	66	1400	2.5	6	1.8
YC90L-4	1	0.75	6.9	0.73	68	1400	2.5	6.5	1.8
YC90L-4	1.5	1.1	9.6	0.74	71	1400	2.5	6.5	1.8
YC100L-4	2	1.5	12.5	0.75	73	1400	2.5	6.5	1.8
YC112M-4	3	2.2	17.8	0.76	74	1400	2.2	6.5	1.8
YC132S-4	4	3	23.6	0.77	75	1400	2.1	6.5	1.8
YC132S-4	5	3.7	28	0.79	76	1400	2.1	6.5	1.8
YC132M-4	7.5	5.5	32.5	0.95	81	1400	2.1	6.5	1.8

OVERALL INSTALLATION DIMENSION:

Frame	Installation dimensions																					Dimensions
	IMB3									IMB14 IMB34						IMB5 IMB35						IMB3
	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	M	N	P	R	S	T	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	130	110	160	-	10	3.5	145	145	140	95	180	255
80	125	100	50	19	40	6	15.5	80	10	110	80	120	0	M6	3	165	130	200	0	12	3.5	160	165	150	110	200	295
90S	140	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	370
90L	140	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	400
100L	160	140	63	28	60	8	24	100	12	-	-	-	-	-	-	215	180	250	0	15	4	205	200	180	130	260	430
112M	190	140	70	28	60	8	24	112	12	-	-	-	-	-	-	215	180	250	0	15	4	245	250	190	140	300	455
132S	216	140	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525
132M	216	178	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525

SINGLE PHASE MOTORS
FACTORY OUTLINED LOOKING:
PAINTING COLOD CODE:
ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.

---
