Ajmtg Graphite Milling Machine Origin China

Product Description

Welcome to Nantong AJ Industry Limited! Explore our AJMTG Graphite Milling Machine from China. We offer high precision CNC equipment for efficient metal cutting. Contact us for customized CNC solutions!
Discover the AJMTG Graphite Milling Machine from Nantong AJ Industry Limited, offering high precision vertical CNC machining with advanced Japan technology. Elevate your metal cutting capabilities with this quality CNC equipment.

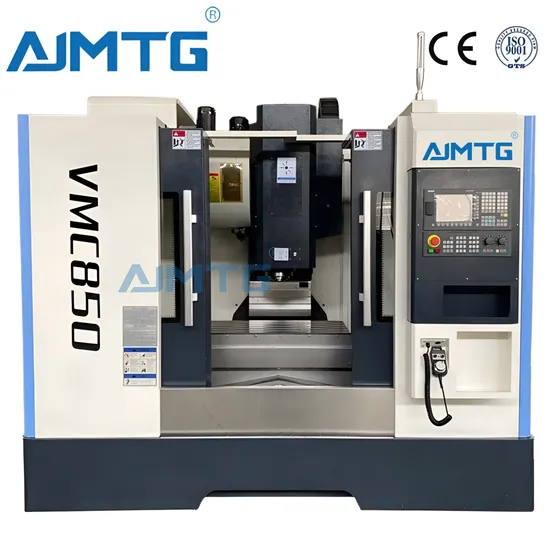

Vmc650 Vmc850 Vmc1270 Vmc1060 CNC Machining Center
Nantong AJ Industry Limited
Introducing our well-sold Vmc650 Vmc850 Vmc1270 Vmc1060 CNC Machining Center, designed for precision metal cutting and drilling. This 3/4/5-axis horizontal machine offers versatility and accuracy for various machining tasks.
Key Features:
X-axis Travel: 800mm
Y-axis Travel: 500mm
Z-axis Travel: 500mm
Spindle Speed: 8,000 RPM
Spindle Motor: 7.5kW
Tool Magazine Capacity: 24
Table Size: 1,000mm x 500mm
Spindle Taper: BT40
Control System: CNC (any brand)
Our CNC Machining Center is ideal for mechanical processing and mold making, offering precise milling, drilling, tapping, and boring capabilities. With high-quality components like Japan-made spindles and Taiwan ball screws, this machine ensures top-level machining accuracy.
Don't miss the opportunity to enhance your machining capabilities with our Vmc series. Contact us today for inquiries and establish a reliable partnership for your machining needs!
Specifications :

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	2*2*3kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Export Certificate for AJMTG Graphite Milling Machine from Nantong AJ Industry Limited, China. High precision CNC equipment for metal cutting tools.

---
