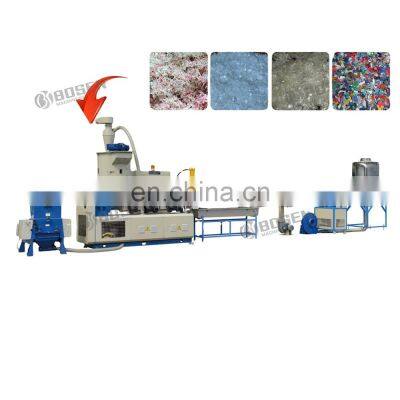

This machine is used to recycle waste PET/ LDPE/HDPE/LLDPE/PP/ABS/PC/PS/NYLON PLASTIC FILM film and bags and other soft plastic sheets or filmsThe first screw is to heat waste film to melt status , the second screw is to produce the finished granulating.
PRODUCE LINE STEPS
crush & washing---------Material loading by hand or belt----- force feeder——one screw /Two screw extruder——die head screen changer ——Water cooling----Air dryer (option)——Pelletizer——Vibrating sieve (option)----Silo
Model
| BSZM 120/110
| BSZM 130/110
| BSZM140/110
| BSZM150/110
|
Diameter of screw
| 120, 110
| 130, 110
| 140, 120
| 150,110
|
Screw L/D
| 18:1, 10:1
| 20:1, 10:1
| 20:1, 10:1
| 20:1, 10:1
|
Main motor power
| 37KW, 11KW
| 45KW, 15KW
| 55KW, 18.5KW
| 75KW, 18.5KW
|
Output
| 100-200KG/H
| 150-300KH/G
| 200-400KG/H
| 250-500KG/H
|
Weight
| 3500KG
| 4000KG
| 4500KG
| 5000KG
|
Recycle material sample
Machine in our factory pictures
Good quality in details
Belt and crush is for your option. Cutter machine is included.
This is new hopper with film cutting and feeding automatic together.
Main Features
1. Bszms series Dry-Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials.
2. It is equipped with automatic constant temperature, hydraulic net changer.
3. It also can pelletize the crushing material after fitting with a loader. Optional
4. The cutting machine adopts speed regulating motor. which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Two times plasticizing system
6. Feeding unit adopts force feeder. optional
7. The helical gear reducer with hard teeth is applied to the extruder and the screw
8. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.
9. Which is durable consists of main extruder and sub-extruder, water tank, drying fan and cutting part with alloy rotary cutter.
10. Besides it is optional to be collocated with drying fan according to the customer’s need.
Detailed Images
EXTRUDER DIE HEAD
High quality die head for best granulating.
High output
Automatic screen changer
MOTOR QUALITY
Motor is Siemens or China brand
CHNT switches
Inverter is Delta or Eura China brand
MACHINE QUALITY
Good design with easy operation and maintain
High output and long machine life
FORCE FEEDING
High speed force feeding unit
With new design
Option with automatic transfer belt
Option with crush machine
Certifications
Packing & Delivery
Packaging
|
Size
| as ordered
|
Weight
| see specification
|
Packaging Details
| The normal package is film packaged in container. If no container i,we will use pe film and wooden case for packing or pack it according to customers special request.
|
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
