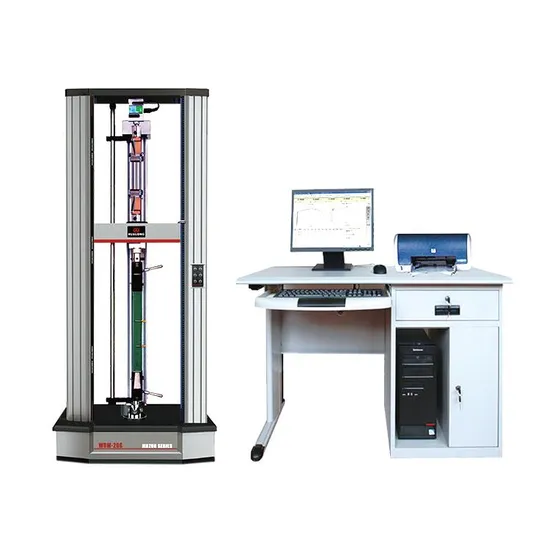

20kN Computerized Universal Tensile Compression Testing Machine

Product Description

20kn Computerized Universal Tensile Compression Testing Machine Product Description
Introduction:
HUALONG HLE series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Advantage:
Improved load accuracy range
Increased data rate
Improved speed accuracy
Wider speed range
Faster return speed for greater productivity
Increased frame stiffness
Improved alignment.
Product Parameters
Technology parameter:

Model		HLE-20
Load cell
Capacity	kN	20
	kgf	2000
Calibration standard	-	0.5 according to ISO 7500-1 - Meets ASTM E-4
Accuracy grade	%	0.5 of reading
Testing load accuracy	%
Deformation accuracy	%
Displacement accuracy	%
Force range	FS	0.2%-100%
Force resolution	FS	Capacity/500, 000 (fully auto scaling of single measurement range)
Force accuracy	%	0.5 of reading
Controller
Sampling frequency	Hz	Up to 1000
Closed loop control frequency	Hz	Up to 1000
Resolution	bit	20
Software		Hualong Test world(Support English, Russian, etc)
Load resolution	kN	Capacity/500, 000 (fully auto scaling of single measurement range)
Crosshead
Position resolution	μm	0.06
Speed	mm/min	0.001-1000
Speed accuracy	%	±1.0/±0.5 of set speed
Travel (without grip)	mm	1150
Travel (inclusive grip)	mm	1050
Main frame
Frame type	-	Floor type double column/dual test space
Test width	mm	500
Power supply	V/Hz	220V 50/60Hz
Dimensions	mm	760*555*1510
Weight	kg	320
