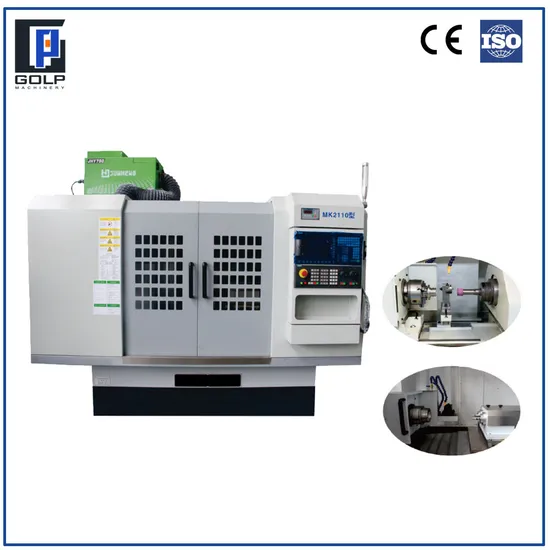

CNC Universal Internal Grinding Machine (CNC Grinder) for Depth 150mm

Product Description

Δ This machine is a two axis (X-axis, Z-axis) CNC Internal Grinder, which is mainly used to grind the inner hole, step hole, iner end face and outer end face of the work piece. The grinding cycle is completed automatically
(with automatic feed,withdrawal , rough grinding and finegrinding); Automatic dressing of grinding wheel,automatic compensation, etc.).
Δ The machine tool is fixed by the work piece box, the worktable moves left and right.and the grinding wheel frame do the back and forth fedingmovement. The movement of the worktable and grinding wheel frame is driven by the servo motor through the ball crew, both of which adoptlinear guide rails.
Δ The rotation speed of work piece spindle and grinding wheel spindle are controlled by frequency converer to reaize stepless speed regulaton.
Δ The machine tool adopts a front movable operation box and an independent electrical cabinet. The protective cover shell has two differentstyles of semi closed or fully closed for users optional.

Grinding aperture (mm)		Φ5-100
Maximum grinding depth (mm)		150
Swing diameter of work piece (mm)	Inside the shell (mm)	Φ260
	Outside the shell (mm)	Φ480
Maximum rotation angle of headstock(° )		20°
Rotating speed of work piece (r/min)		0-800 stepless speed regulation
Rotating speed of grinding wheel (r/min)		0-42000(stepless speed regulation)
Power of x axis servo motor (kw)		1
Resolution of x axis (mm)		0.001
Maximum stroke of x axis (mm)		150
Power of z axis servo motor (kw)		2
Resolution of z axis (mm)		0.001
Maximum stroke of z axis (mm)		500
Power of work piece motor (kw)		0.45/0.75
Power of grinding wheel motor (kw)		7-9
Total power of machine tools (kw)		12.75
Outline dimension of machine tools (mm)		2363x1860x2000
Weight of machine tools (kg)		2500
Working accuracy(according to standard specimen)	Roundness of internal hole ( u m)	2
	Cylindricity of internal hole ( u m)	3
	Surface roughness of internal hole(um)	Ra0.4

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
