Air Jet Loom with Superior Technology Electronic Jacquard Machine High-Quality Fabric Creation

Product Description

· PRODUCT INTRODUCTION--------------------------------------------------------- Type: WMT2816A, WMT5376A,WMT6144A,WMT6912A,WMT8448A,WMT12288A Speed: Upto 650RPM Selection Method: Module + drive plate + aluminum alloy handle Shedding Form: Conjugate CAM structure,positive double-lift,fully-open shedding mechanism Shedding Height: The front shedding width range is 45-109mm. Back shedding width range is 72-120mm with easy adjustment. Driving Mode: Vertical shaft+ gearbox or None-vertical shaft Note: Other specification can be made according to customers' requirement CHARACTERISTICS-------------------------------------------------------------------------------- It is a brand-new high-quality electronic jacquard machine especially developed for heavy-duty craft and lifting high-speed weaving machines. The mechanical transmission system has been optimized and improved, adopting a cam structuretransmission method to reduce waste of warp opening, ensuring smooth mechanical transmission and low noise; At the same time, adopting a low-power component needle selection method will greatly reduce energy consumption in the process of heavy jacquard.By adopting embedded intelligent control modules and touch screenhuman-machine interaction interfaces, it has a better control experience and meetsthe requirements of long-term high-speed operation of the equipment. It can carry its own power source and perform shaft free synchronous transmission with the loom. RANGE OF APPLICATION--------------------------------------------------------------------------- It is mainly used in conjunction with various imported and domestic high-speed rapier looms, jet looms, water jet looms, and projectile looms. Used for the production of various textiles such as trademarks, ties, clothing fabrics, decorative fabrics, scarves, brocade paintings, etc., especially in heavy lifting processes, this jacquard machine has outstanding advantages.

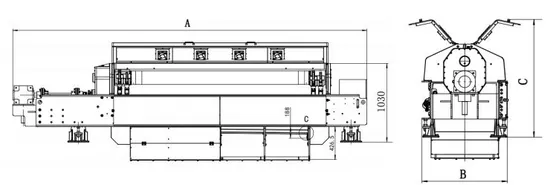

TECHNOLOGY PARAMETER

TYPE	Length A (mm)	Width B (mm)	Height C (mm)	Weight (kg)
WMT2816A	4030	940	1030(1340)	2100
WMT5376A	4454	940	1030(1340)	2500
WMT6144A	4624	940	1030(1340)	2500
WMT6912A	4034	1260	1100	3500
WMT8448A	4325	1260	1100	4000
WMT12288A	4670	1532	1154	4500

MACHINE'S PHOTO

---
