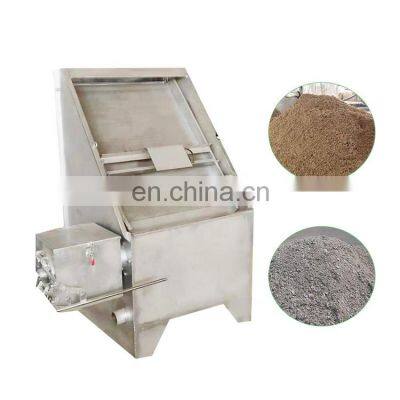

Product Description of Solid Liquid Separator
This solid liquid separator is also called:Manure dewatering machine,manure separator,Poultry manure removal system,ect.It is mainly to deal with high water content and low concentration materials, the material moisture content is required to be more than 90%, and the solid content is 0.3mm or more.The key part of this separator are made of 304 stainless steel, such as screen, spiral, etc., with good corrosion resistance, and the service life is 2-3 times that of other similar products.The solid-liquid separator can separate with gravity larger than 3μm-9mm. The solid-liquid separator can also treat sewage with a suspended matter content of up to 25000mg/l. After using the separator.The treated wastewater has a solid content of less than 1%, and the moisture content of the dried slag is less than 50%, and no secondary pollution.The slag can be directly packaged and transported to continue fertilizer utilization, and can also be used as a fish bait.
Application of Solid Liquid Separator
This solid liquid separator can deal with animal waste,like:pig manure,duck dung,chicken manure,cow dung,ect.It is also can deal with daily waste, and industrial waste.Such as:cacao residue,tealeaf dregs,bagasse,sludge,vinassa,herb dregs,starch residue,ect.Widely used in farms, wineries, food factories, sewage plants, etc. Because of the different raw materials processed, we can design a reasonable use plan according to the customer's requirements.
Advantage of Solid Liquid Separator
1.Designed as a vibration separation method, the solid-liquid separation speed is fast, and the processing capacity is large.The sieve can be change according to the condition of the slag content of the sewage liquid.
2. The manure dewatering machine adopts a spiral slag extrusion system to perform secondary extrusion on the separated dung slag .Without environmental pollution, so that the slag reaches a good fermentation humidity.
3.Machine with automatic cleaning system solves the problem that the dregs block the screen after the shutdown, ensuring the normal continuous operation of the machine.
4.The manure dehydrator has the function of sorting and filtering, solving the problem of garbage winding equipment.
5.The stainless steel used by the machine is pickling passivation , which has strong corrosion resistance.So it has long service life.
304 Stainless Steel
This manure separator adopt full 304 stainless steel.Because of the complex working environment .Compared with other similar products, it is corrosion-resistant, resistant to acid and alkali corrosion, and has a longer service life, thus saving costs.
Strong Screw
The screw adopts cold press forming.Compared with the cutting screw, the working process is more stable and customers feel better when using the dewatering machine.Not happen friction phenomenon.
Thicken Mesh
This dewatering machine adopt thick stainless steel to make mesh.We have different screens for different materials.Golden ratio cutting, 1000+ times corrosion test.In order to ensure the good effect of the dewatering machine.
Vibrator Motor
This dewatering machine has an automatic cleaning system,which solves the problem that the material clogs the mesh after the shutdown, and the internal slag flushing of the device.For the customer have a better use effect.
Work Principle of Solid Liquid Separator
The screw pump lifts the material into the machine, passes through the sieve and filters it into the machine spiral for pressing, thereby obtaining the dried slag.
Parameter of Solid Liquid Separator
Model
| SL-800
| SL-1200
|
Power
| 4 kw
| 5.5 kw
|
Pig Manure
| 16-20 m3/h
| 36-40 m3/h
|
Cow Manure
| 14-18 m3/h
| 34-38 m3/h
|
Chicken Manure
| 12-16 m3/h
| 32-36 m3/h
|
Weight
| 350 kg
| 380 kg
|
Dimension
| 2200*1200*1450 mm
| 2200*1200*1650 mm
|
Packing & Delivery
Customer Case
Certifications
Our Service
FAQ
Q:What is the voltage/phase for this machine ?
A:China's standard voltage 380 v/50 hz/3 ph.We also can made as the clients' need.
Q:How long will the machine be sent out?
A:We usually delivery in 3-5 working days after getting full payment, and we will inform you shipping time based on your seaport.
Q:How long is the guarantee?
A:We promise guarantee as one year for non-human damage factor.
Q:What should we do when have some problems during using?
A:We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
